Запчасти Case IH JX1080U (1.40. 3/03) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING

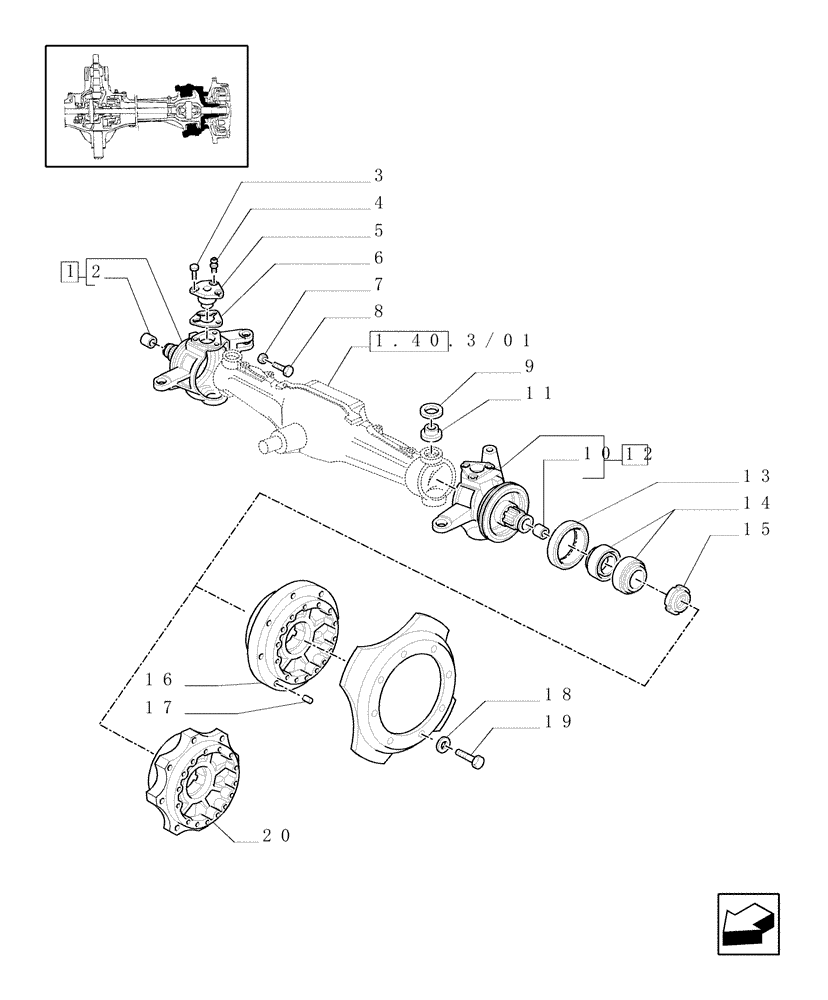

Схема запчастей Case IH JX1080U - (1.40. 3/03) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING
8
17
18
16
6
1.40.3/01
14
15
5
10
19
11
3
13
7
1
9
2
12
4
20

Артикул

Название

Примечание

Количество

1

5171553

KNUCKLE

ASSY. RH

1шт.

2

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

1шт.

3

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5137239

BALL STUD

BALL PIN

4шт.

6

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

6

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

6

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

6

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

0.25 mm

1шт.

6

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

0.30MM

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

8

5167638

SCREW

2шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

70x56x7.5

4шт.

10

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

1шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

12

5171552

KNUCKLE,LH

LH

1шт.

13

5137109

SEAL

165 x 190 x 17

2шт.

14

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

15

5142020

NUT,Hex, M75 x 2

2шт.

16

5151461

HUB

, Serial Range: -C5201

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

12 x 20

2шт.

18

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

19

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

20

87341361

HUB

, Start Serial: D5201

2шт.

Выбрано товаров: 24
