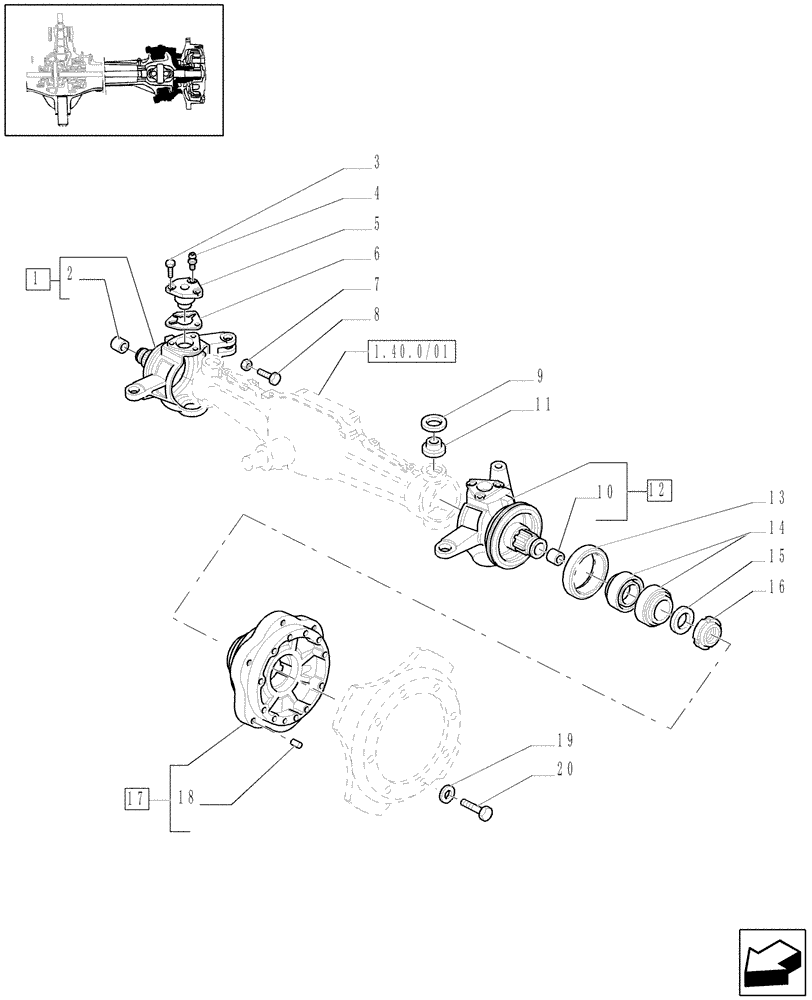

Запчасти Case IH JX1080U (1.40. 0/02[01]) - FRONT AXLE 4WD - STEERING KNUCKLES, HUBS (04) - FRONT AXLE & STEERING

1

5173285

KNUCKLE

RH, JX1080U, Serial Range: -C5479

1шт.

1

5173287

STUB AXLE/STEERING S

RH, JX1070U, Serial Range: -C5479

1шт.

1

87538046R

REMAN-AXLE

JX1070U TRACTOR, RH, JX1070U, Serial Range: -C5479 (1/04-), Reman for New PN 5173287

1шт.

1

87538046C

CORE-AXLE

Return Number

1шт.

1

87538049

KNUCKLE,RH

RH, JX1080U, Start Serial: D5479

1шт.

1

87538046

KNUCKLE,RH

RH, JX1070U, Start Serial: D5479

1шт.

1

87538046R

REMAN-AXLE

JX1070U TRACTOR, RH, Start Serial: D5479 (1/04-)

1шт.

1

87538046C

CORE-AXLE

Return Number

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

1шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN

4шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

MM.0.2

1шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

MM.0.25

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

8

5167638

SCREW

M18 x 105

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

10

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

11

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

30 x 55 x 17

4шт.

12

5173281

STUB AXLE/STEERING S

LH, Serial Range: -C5479

1шт.

12

87538023R

REMAN-AXLE

JX1070U, JX1080U, Both TRACTOR, LH, Serial Range: -C5479 (1/04-), Reman for New PN 5173281

1шт.

12

87538023C

CORE-AXLE

Return Number

1шт.

12

87538023

KNUCKLE,LH

LH, Start Serial: D5479

1шт.

12

87538023R

REMAN-AXLE

JX1070U, JX1080U, Both TRACTOR, LH, Start Serial: D5479 (1/04-)

1шт.

12

87538023C

CORE-AXLE

Return Number

1шт.

13

5184122

SEAL,130mm ID x 154mm OD x 18mm Thk

154 x 130 x 15, Serial Range: -C5479

2шт.

13

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

, Start Serial: D5479

1шт.

14

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

70 x 110 x 21

4шт.

15

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

2шт.

16

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

RH Thread, M70x2

1шт.

16

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

LH Thread, M70x2

1шт.

17

5169118

HUB

, Serial Range: -C5479

2шт.

17

87542225

HUB

, Start Serial: D5479

2шт.

18

4988170

PIN,10mm OD x 20mm L

M10 x 20

4шт.

19

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

12шт.

20

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

12шт.
