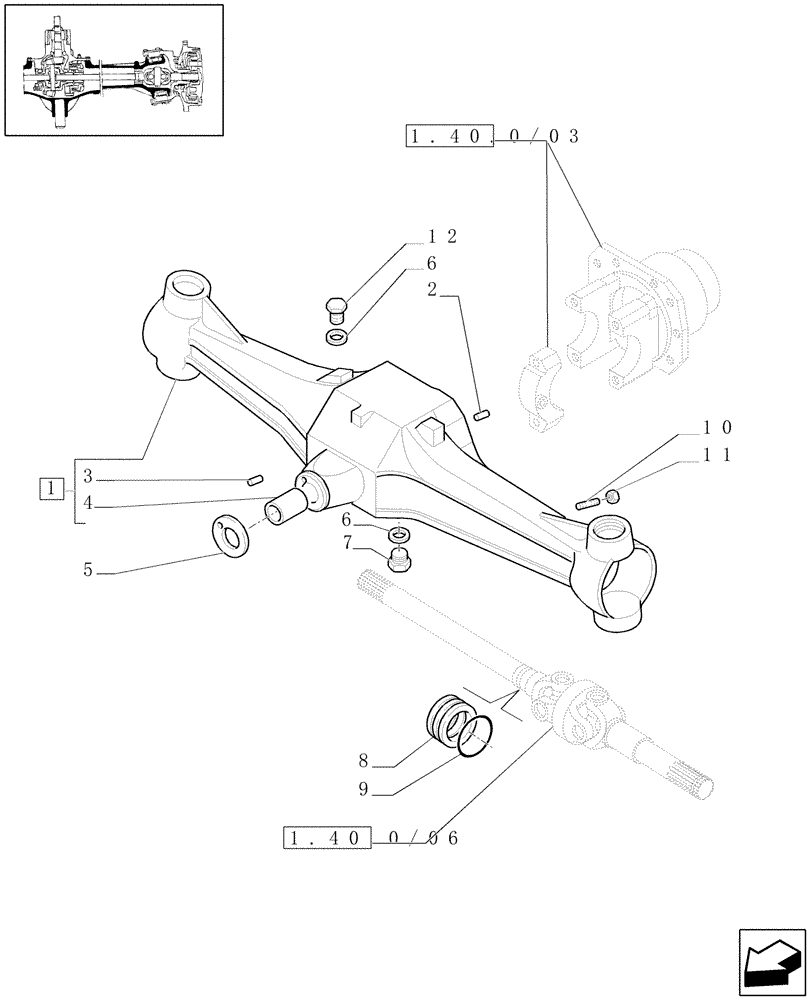

Запчасти Case IH JX1080U (1.40. 0/01) - FRONT AXLE 4WD - BOX & RELEVANT PARTS (04) - FRONT AXLE & STEERING

1

5164327

AXLE HOUSING

JX1090U - JX1100U

1шт.

1

5165117

AXLE HOUSING

JX1070U - JX1080U

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

Front

1шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

3шт.

7

10305171

PLUG,M22 x 1.5 x 21

2шт.

8

4996755

BUSHING

JX1090U - JX1100U

2шт.

8

4997348

SLEEVE

JX1070U - JX1080U

2шт.

9

14460680

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

JX1070U - JX1080U

1шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62, JX1090U - JX1100U

1шт.

10

87316865

SET SCREW,M12 x 1.25 x 53mm

M12 x 1.25 x 53

2шт.

11

16101524

NUT,M12 x 1.25, Cl 10

2шт.

12

10275011

PLUG,M22 x 1.5 x 13

JX1090U - JX1100U

1шт.
