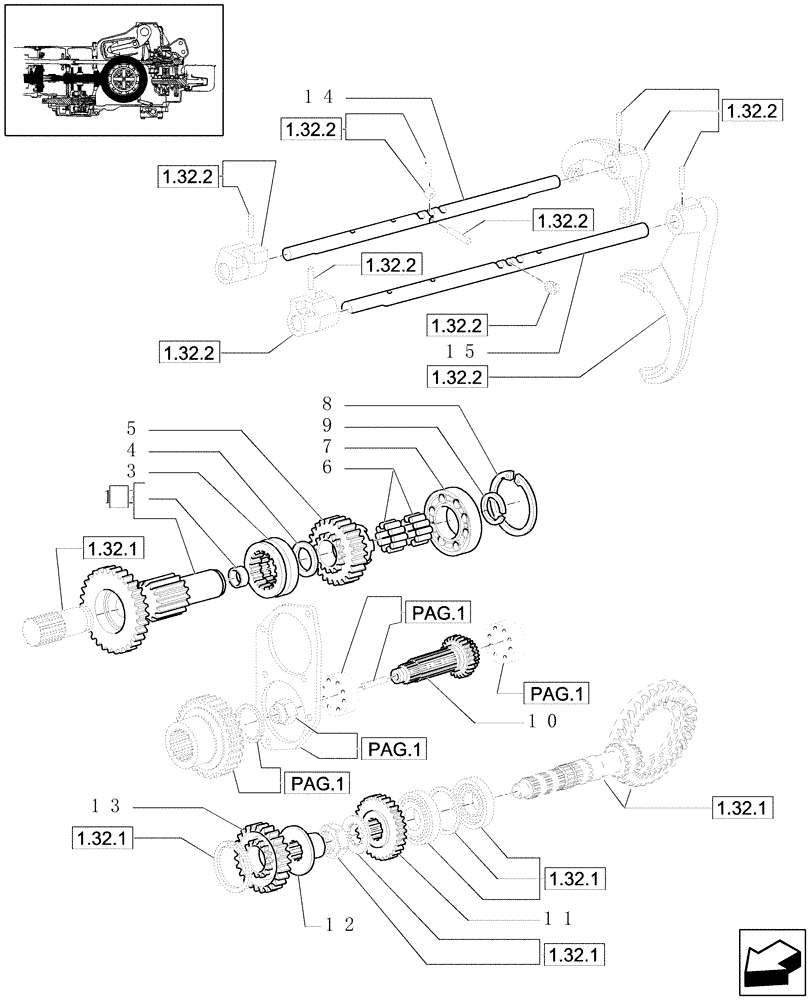

Запчасти Case IH JX1080U (1.28.1/02[04]) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - 4WD - SHAFTS AND GEARS (03) - TRANSMISSION

1

5176778

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25 x 28 x 18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

D = 47

1шт.

10

5160028

SHAFT

1шт.

11

87388608

DRIVEN GEAR

1шт.

12

5131681

SPACER

1шт.

13

5131680

DRIVEN GEAR

1шт.

14

5131682

SHIFT RAIL

1шт.

15

5131683

SHIFT RAIL

1шт.
