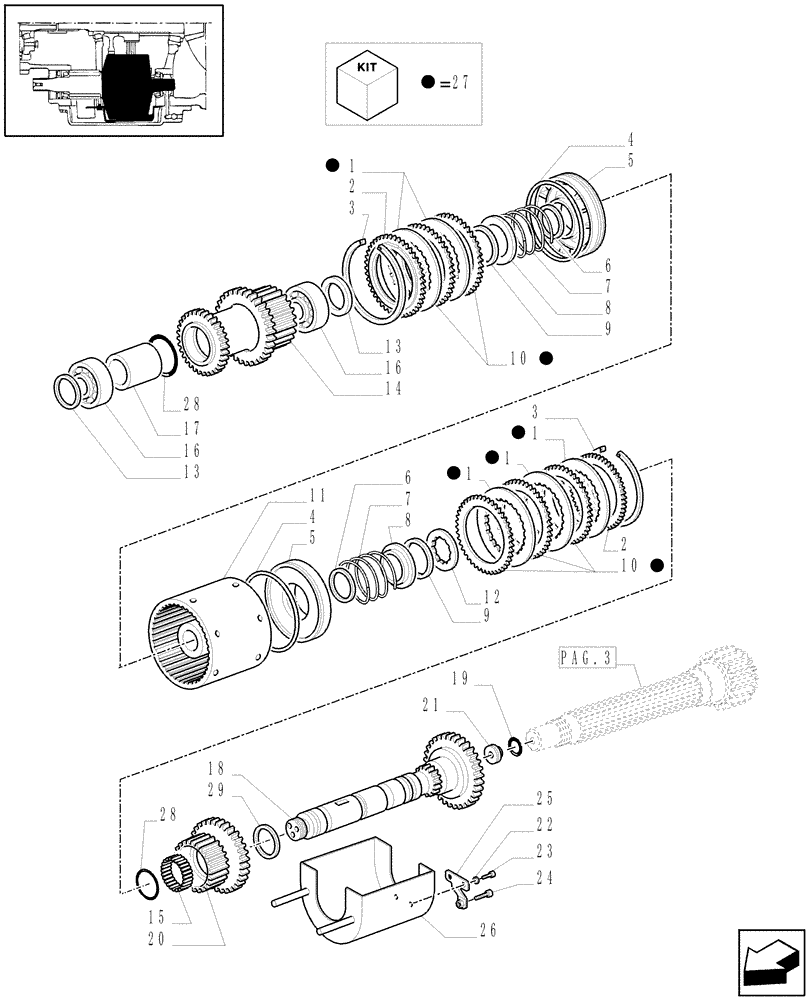

Запчасти Case IH JX1080U (1.27.1/06[02]) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE, HYDRAULIC P.T.O. -DRIVEN SHAFT & CLUTCH (03) - TRANSMISSION

1

5154744

CLUTCH DRIVING PLATE

, Serial Range: -C5646

10шт.

1

87534846

CLUTCH PLATE,92.66mm ID x 133.35mm OD x 2mm Thk

, Start Serial: D5646

10шт.

2

5188572

CLUTCH PLATE

2шт.

3

5124067

CIRCLIP

D=135

2шт.

4

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

2шт.

5

5188568

PISTON

2шт.

6

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

2шт.

7

5171681

SPRING,Compression, 79mm OD x 61mm L

2шт.

8

5188569

CUP

2шт.

9

5124059

CIRCLIP

D=52,8

2шт.

10

5137544

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 1.8mm Thk

10шт.

11

5188557

HOUSING

1шт.

12

5192138

THRUST WASHER

1шт.

13

5137538

THRUST WASHER

2шт.

14

5197896

GEAR

1шт.

15

5124054

ROLLER CAGE BEARING,55mm ID x 63mm OD x 25mm W

1шт.

16

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

17

5192269

RING

1шт.

18

87324384

SHAFT

, Start Serial: D5395

1шт.

18

5195436

DRIVEN SHAFT

, Serial Range: -C5395

1шт.

19

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

20

5197895

GEAR

1шт.

21

5192150

SEAT/SLOT

1шт.

22

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

2шт.

23

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

M6X14

2шт.

24

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

25

5190155

BRACKET

1шт.

26

5190154

GUARD

1шт.

27

5187316

KIT

, Serial Range: -C5646

1шт.

27

87534847

KIT

, Start Serial: D5646

1шт.

28

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

4шт.

29

5194902

RING,33.9mm ID x 40mm OD x 2.43mm Thk

1шт.
