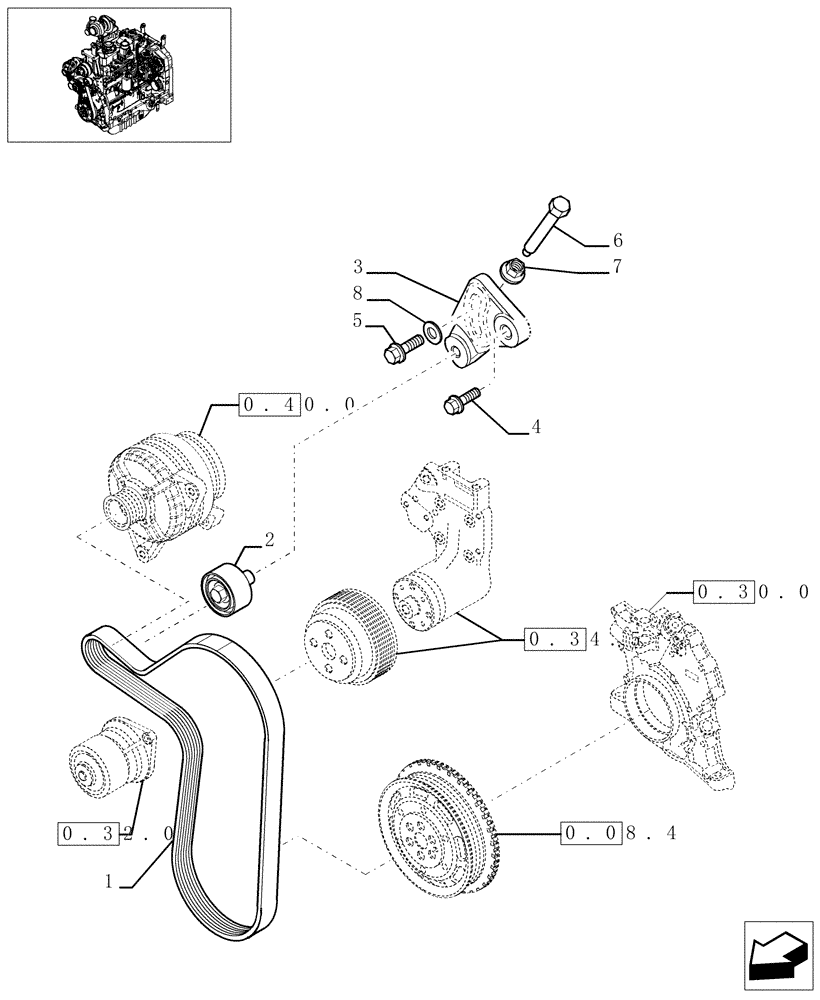

Запчасти Case IH JX1070U (0.34.0) - WATER PUMP DRIVE (01) - ENGINE

1

47131754

V-BELT,28.48 mm W x 1381.00 mm L, 8 Ribs

1шт.

1

47135840

V-BELT,1367.00 mm L, 8 Ribs

W/Var.174 viscous joint, Serial Range: -C5617

1шт.

2

2853006

PULLEY,65mm OD

1шт.

3

2853668

BELT TENSIONER

1шт.

4

2852403

FLANGE BOLT,Hex, M10 x 1.5 x 30mm

1шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8X30

1шт.

6

2853650

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

7

2852236

FLANGE NUT,M10 x 1.5

1шт.

8

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.
