Запчасти Case IH JX1070U (0.30.0) - OIL PUMP (01) - ENGINE

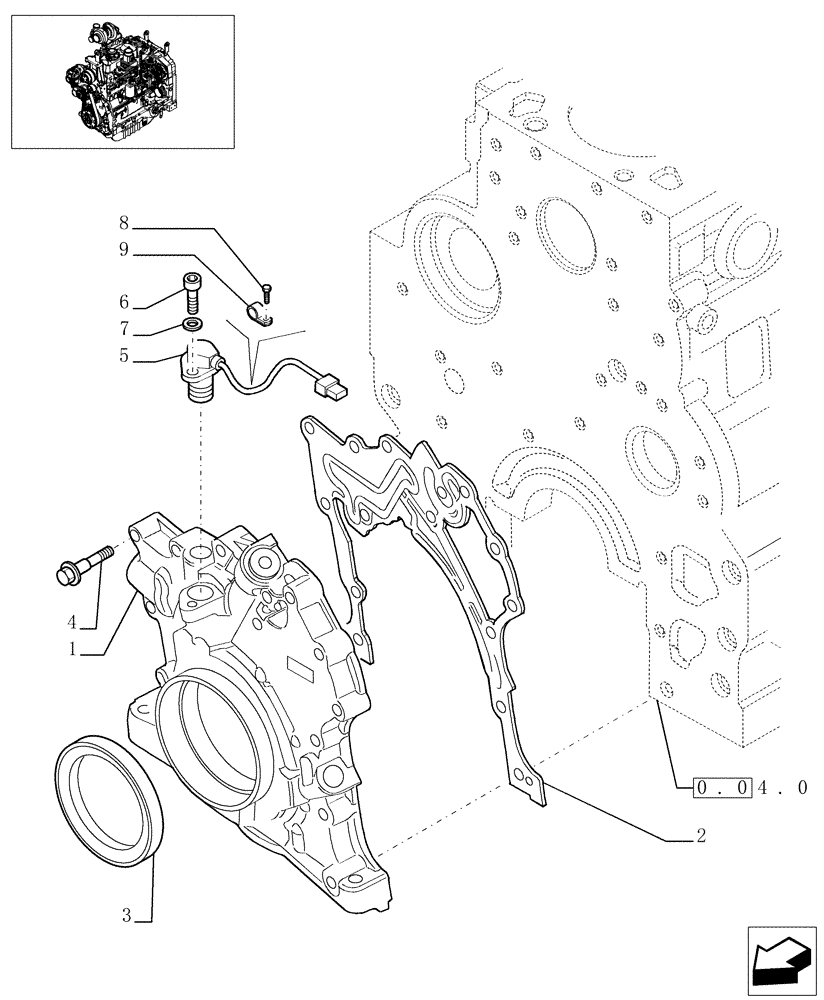

Схема запчастей Case IH JX1070U - (0.30.0) - OIL PUMP (01) - ENGINE
4
1
0.04.0
3
5
7
9
2
8
6

Артикул

Название

Примечание

Количество

1

2830913

ENGINE OIL PUMP

JX1100U, JX1090U

1шт.

2830913R

REMAN-ENG OIL PUMP

JX1070U, JX1080U, JX1090U, JX1100U all (1/04-)

1шт.

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

1

2830912

ENGINE OIL PUMP

JX1080U, JX1070U

1шт.

2830913R

REMAN-ENG OIL PUMP

JX1070U, JX1080U, JX1090U, JX1100U all (1/04-) Reman For New P/N 2830912

1шт.

2830913C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

5

2853552

SENSOR

1шт.

6

4899082

HEX SOC SCREW,M6 x 20mm

1шт.

7

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

8

2852776

WASHER,6mm ID x 11mm OD

6X11

1шт.

9

2852819

CLAMP

1шт.

Выбрано товаров: 16
