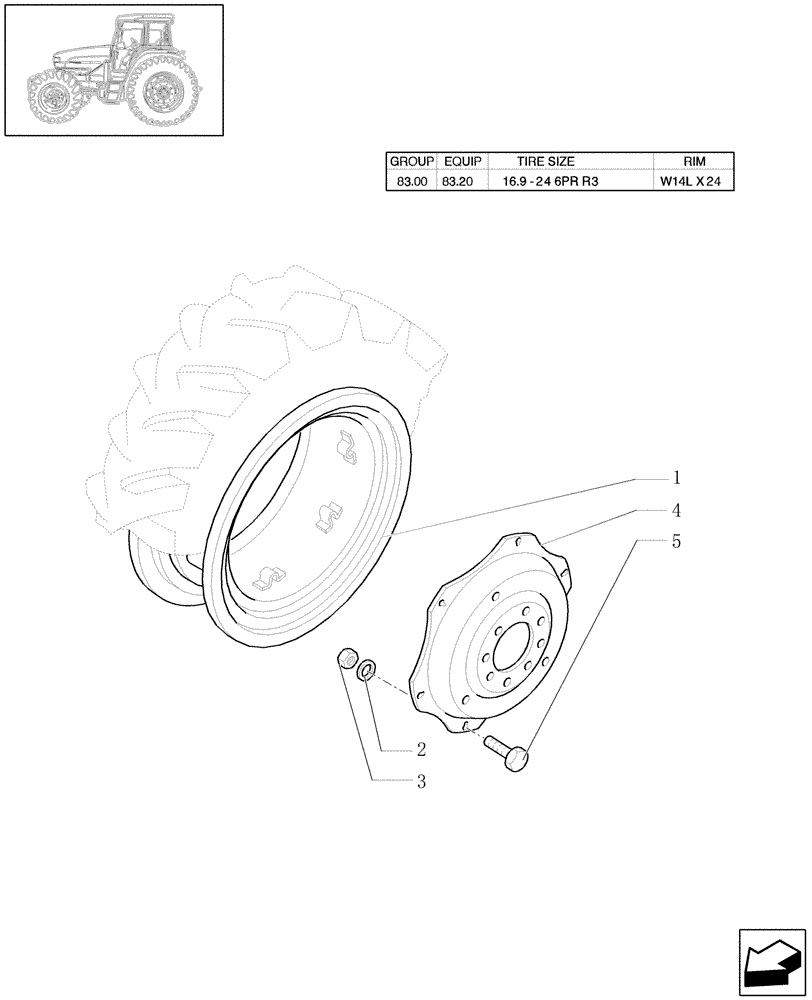

Запчасти Case IH JX1070U (83.00[04]) - RIM (DRIVE WHEELS) (11) - WHEELS/TRACKS

1

47128191

RIM

WL14x24

2шт.

2

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

D=14

12шт.

3

10790421

NUT,M14 x 1.5, Cl 10

12шт.

4

47128172

DISC

2шт.

5

4959999

BOLT,M14 x 1.5 x 35mm

M14

12шт.
