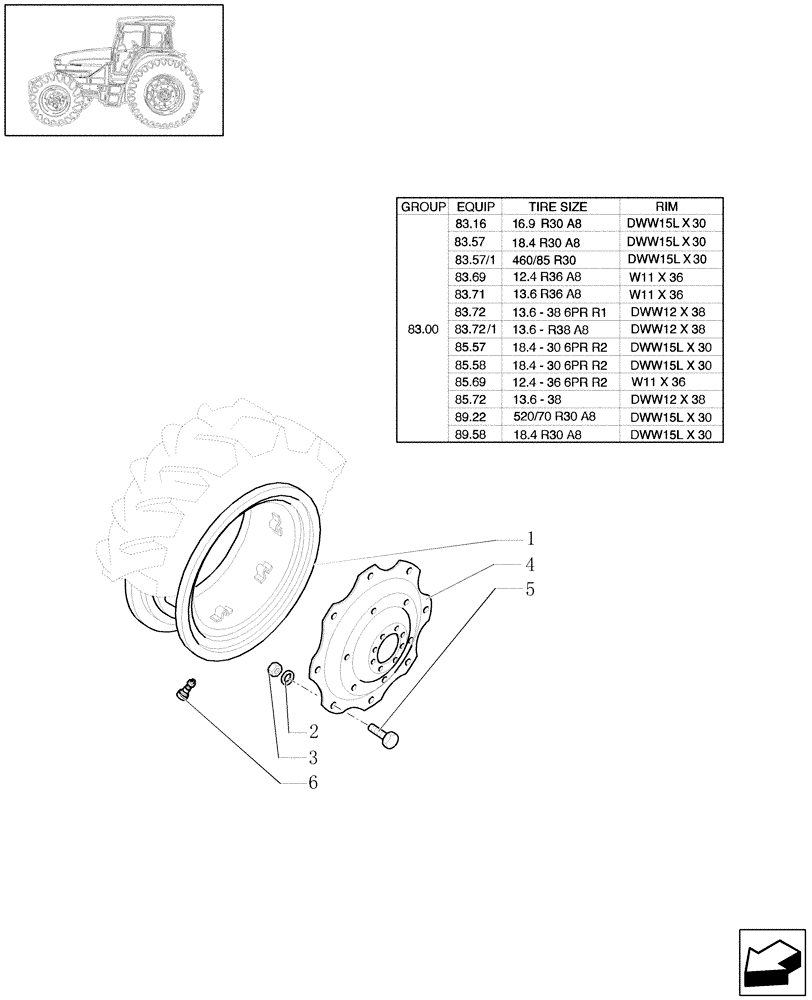

Запчасти Case IH JX1070U (83.00[02]) - RIM (DRIVE WHEELS) (11) - WHEELS/TRACKS

1

47128182

RIM

W11 x 36, JX1070U

2шт.

1

47128195

RIM,DWW15Lx30, 8 Bolts, CASE Silver

DWW15L x 30, JX1080U, JX1090U, JX1100U

2шт.

1

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12 x 38

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

47128174

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

JX1080U, JX1090U, JX1100U, for DWW15L x 30

2шт.

4

47129794

WHEEL DISC

for W11 x 36 and DWW12 x 38

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

85700224

VALVE STEM

2шт.
