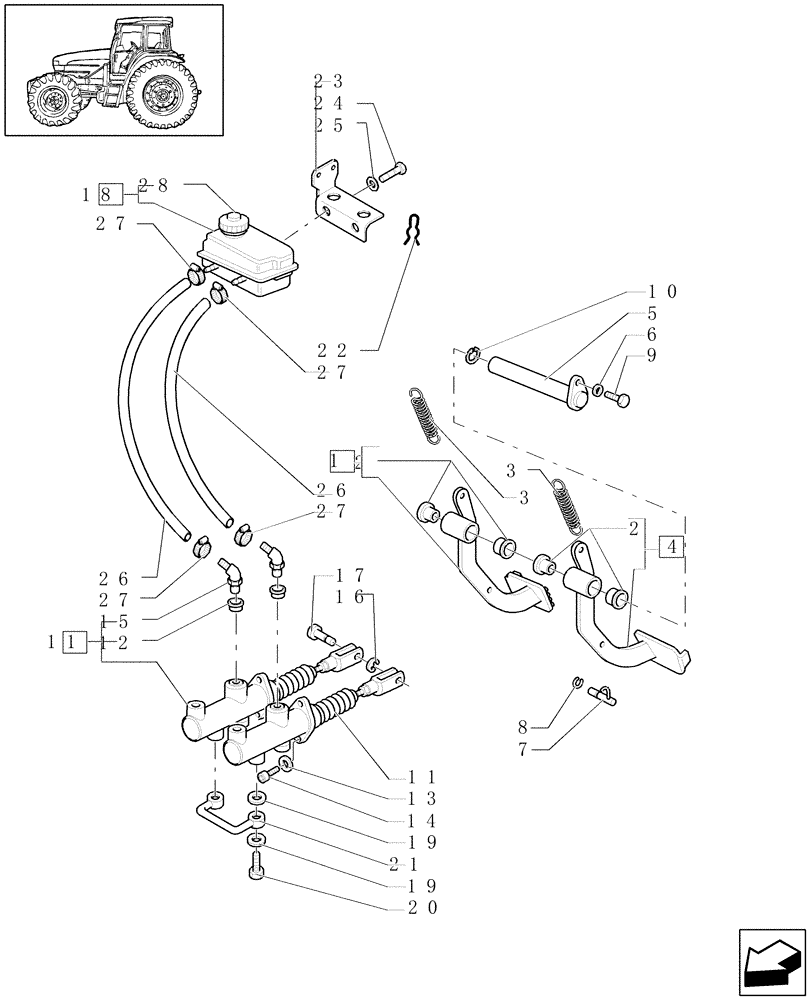

Запчасти Case IH JX1070U (1.95.0) - BRAKES - PUMPS AND PEDALS (10) - OPERATORS PLATFORM/CAB

1

47137542

PEDAL

RH

1шт.

2

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

3

5153180

SPRING,21mm OD x 84mm L

2шт.

4

47137545

PEDAL

LH

1шт.

5

82030041

PIN,25mm OD x 153mm L

1шт.

6

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.

7

5142152

LOCK PIN

1шт.

8

11088180

CIRCLIP,M11, Stainless

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

10

11067376

SNAP RING,M25, Ext

1шт.

11

87354681

MASTER CYLINDER,38.3mm Stroke

, Start Serial: D5388

2шт.

11

47125744

MASTER CYLINDER

, Serial Range: -C5388

2шт.

12

9966201

GASKET

2шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

14

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

9963010

ELBOW

2шт.

16

11064176

CLIP,M10 x 8mm

M10 x 8 x 1.05

2шт.

17

5155381

PIN,9.85mm OD x 28mm L

2шт.

18

87310627

BRAKE FLUID TANK,0.286L

1шт.

19

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12 x 18 x 1.5

4шт.

20

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

21

5155701

TUBE

1шт.

22

5141690

SPRING,2mm OD x 43mm L

2шт.

23

47129627

BRACKET

1шт.

24

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

25

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

26

19053182

HOSE

1шт.

27

10186590

CLAMP,11mm - 13mm

4шт.

28

87306500

FILLER CAP

W/Sensor

1шт.
