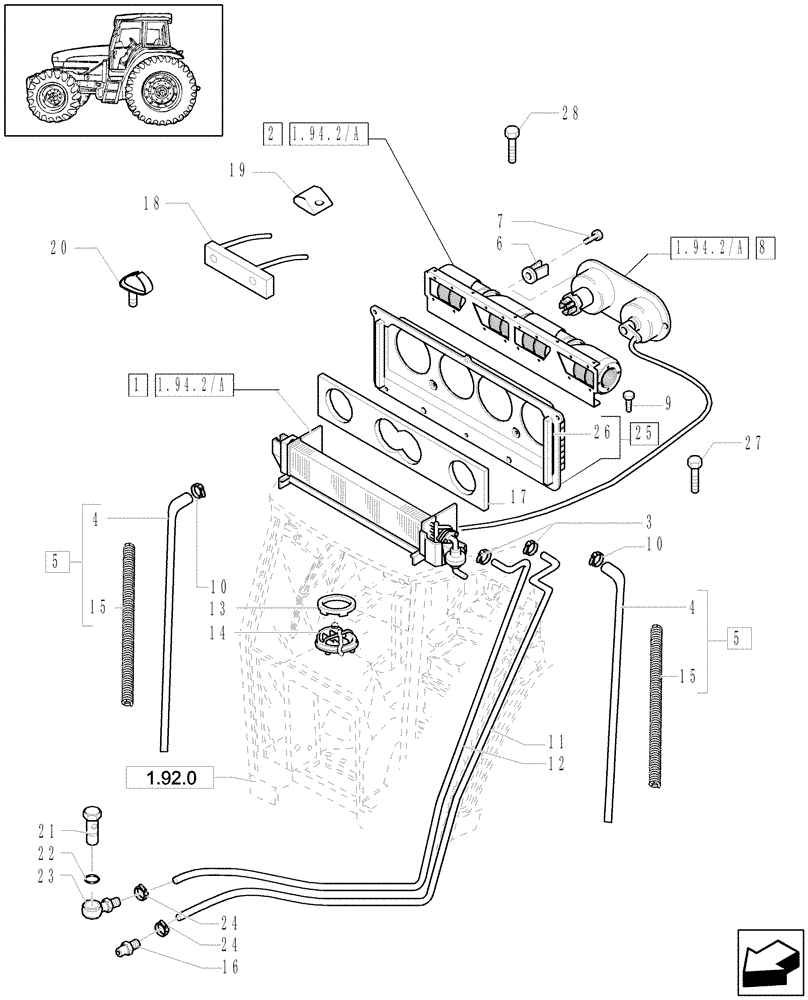

Запчасти Case IH JX1070U (1.94.2[01]) - CAB - HEATING, PARTS (10) - OPERATORS PLATFORM/CAB

1

5192874

HEATER

1шт.

2

82002761

BLOWER

1шт.

3

13423777

HOSE CLAMP,20.6mm - 22.9mm

20.6-22.9

4шт.

4

19053382

HOSE,10.00 mm

10x15

1шт.

5

5186523

TUBE,1920.00 mm

2шт.

6

14115780

BLOCK

2шт.

7

15691607

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 22mm

2шт.

8

5178633

CONTROL PANEL

1шт.

9

10445821

SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd

4шт.

10

13423577

HOSE CLAMP,16.5mm - 18.3mm

16.5-18.3

2шт.

10

13423470

HOSE CLAMP,14.8mm - 16.4mm

14.8x16.4

4шт.

11

47129951

HEATER HOSE,14.00 mm ID x 3500.00 mm

FEED

1шт.

12

47129952

HEATER HOSE,14.00 mm ID x 4140.00 mm

RETURN

1шт.

13

5108700

SEALING RING,98.5mm ID

6шт.

14

9958999

DIFFUSER

D=97.5

6шт.

15

5186521

SPRING

2шт.

16

47129948

FITTING

1шт.

17

47131657

SEAL

1шт.

18

47134551

BRACKET

1шт.

19

47134634

BRACKET

8шт.

20

14575780

SPRING

4шт.

21

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

1шт.

22

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

23

47129949

FITTING

1шт.

24

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

20-32

2шт.

25

87315905

COVER

, Start Serial: D5359

1шт.

26

47124181

SEAL

, Start Serial: D5359

2шт.

27

13277024

SCREW,Pozidriv Pan Hd, M6 x 40mm, Cl 8.8

, Start Serial: D5359

6шт.

28

13277524

SCREW,Pozidriv Pan Hd, M6 x 65mm, Cl 8.8

, Start Serial: D5359

4шт.
