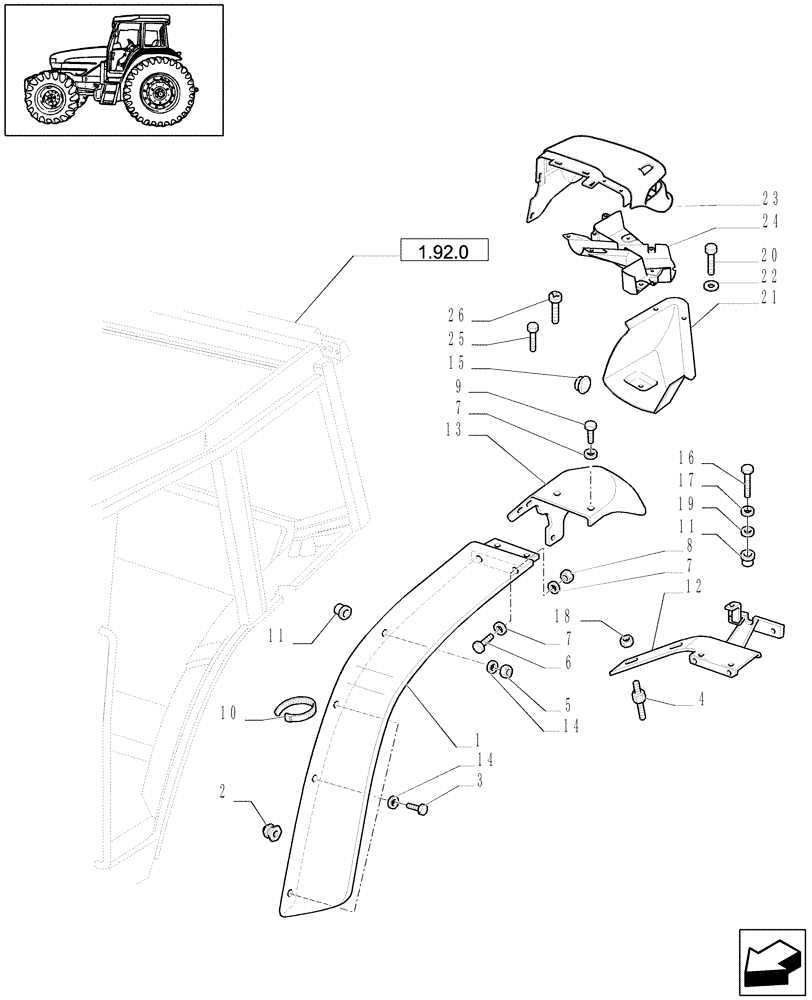

Запчасти Case IH JX1070U (1.92.5) - CAB - REAR FENDERS (10) - OPERATORS PLATFORM/CAB

1

47126941

FENDER

LH, with 4 holes bolts

1шт.

1

47126939

FENDER

RH, with 4 holes bolts

1шт.

2

81864782

RETAINER

6шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

4

47124890

PIN

4шт.

5

16104511

NUT,M8 x 1.25, Cl 8.8

4шт.

6

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

7

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

12шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

9

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

10

14560287

CABLE TIE,207.00mm L

COLLAR

4шт.

11

15629111

RIVET,Flat, M8 OD x 17.5mm L

7шт.

12

82029126

SUPPORT

RH, Serial Range: -C5032

1шт.

12

82029127

SUPPORT

LH, Serial Range: -C5032

1шт.

13

82024249

REAR FENDER

RH, Serial Range: -C5032

1шт.

13

82024250

REAR FENDER

LH, Serial Range: -C5032

1шт.

14

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

24шт.

15

5155568

PLUG,Cap locking hole

2шт.

16

16201824

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.

17

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

1шт.

18

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

19

5178210

SEALING WASHER,M7 x 27 x 3 Thk

1шт.

20

83964105

SCREW,Pan HD, M5 x 16mm

Pan Hd 5x8x1.6, Serial Range: -C5032

6шт.

VAR.250-832-836

1шт.

21

82028981

COVER

RH, Serial Range: -C5032

1шт.

VAR.250-832-836

1шт.

21

82028980

COVER

LH, Serial Range: -C5032

1шт.

VAR.250-832-836

1шт.

22

12637821

WASHER,5.15mm ID x 11mm OD x 1mm Thk

, Serial Range: -C5032

6шт.

VAR.250-832-836

1шт.

23

47137820

MUD CLEANER

RH, Start Serial: D5032

1шт.

23

47137818

MUD CLEANER

LH, Start Serial: D5032

1шт.

24

47137812

COVER

RH, Start Serial: D5032

1шт.

VAR.250-832-836

1шт.

24

47137811

COVER

LH, Start Serial: D5032

1шт.

VAR.250-832-836

1шт.

25

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

, Start Serial: D5032

1шт.

VAR.250-832-836

1шт.

26

13277719

SCREW,M6 x 75mm

M6x75, Start Serial: D5032

1шт.

VAR.250-832-836

1шт.

26

13279619

SCREW

M6x35, Start Serial: D5032

1шт.

VAR.250-832-836

1шт.

26

13276119

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 5.8

, Start Serial: D5032

1шт.

VAR.250-832-836

1шт.
