Запчасти Case IH JX1070U (1.91.7/ A) - CAB - LIGHTING & PARTS (10) - OPERATORS PLATFORM/CAB

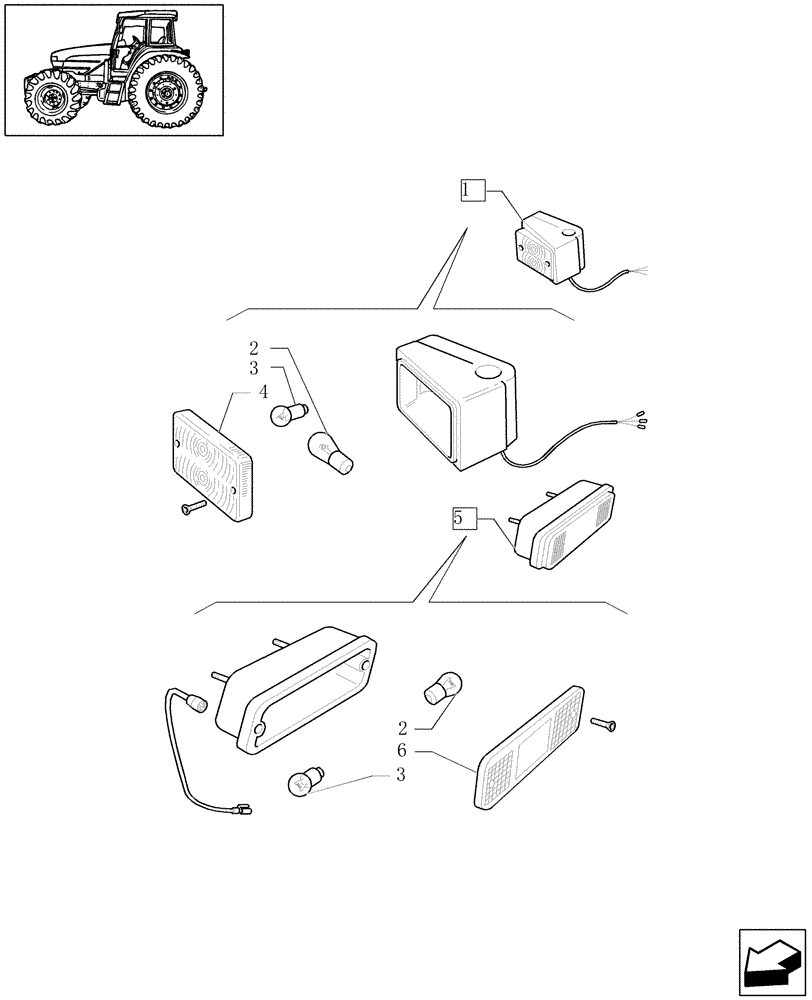

Схема запчастей Case IH JX1070U - (1.91.7/ A) - CAB - LIGHTING & PARTS (10) - OPERATORS PLATFORM/CAB
3
3
4
5
6
2
2
1

Артикул

Название

Примечание

Количество

1

82009121

FRONT LAMP,12V, 21W, Amber/Clear

LH, Includes, Serial Range: 2-4

1шт.

1

82009122

FRONT LAMP,12V, 21W, Amber/Clear

RH, Includes, Serial Range: 2-4

1шт.

2

529068

BULB,#1156, 12V, 21W

4шт.

3

10857790

BULB,R10W, 12V, 5W

4шт.

4

71316700

LENS

Clear and Amber

2шт.

5

82009066

TAIL LAMP,12V, 21W, Amber/Red

Includes 2,3,6, Serial Range: -C4915

2шт.

6

9970106

LENS

, Serial Range: -C4915

2шт.

Выбрано товаров: 7
