Запчасти Case IH JX1070U (1.91.4/01) - (VAR.275-279-748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDRAULIC PTO - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB

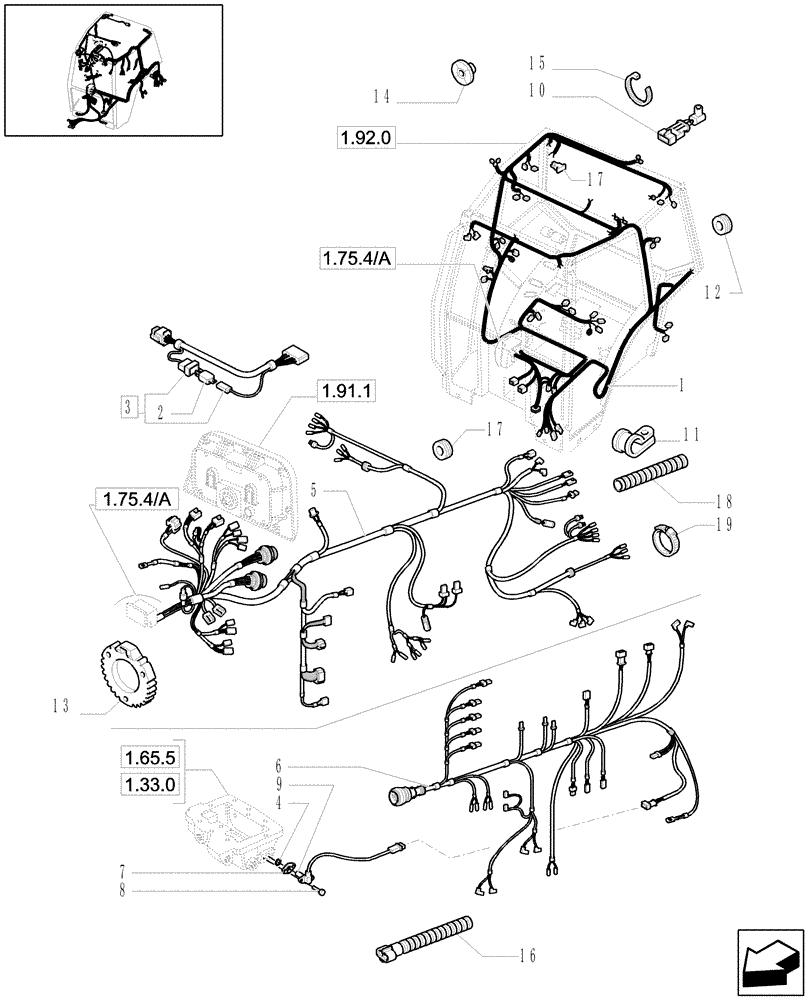

Схема запчастей Case IH JX1070U - (1.91.4/01) - (VAR.275-279-748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDRAULIC PTO - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB
17
13
17
8
14
18
19
1
9
5
12
4
6
10
2
7
16
3
15
11

Артикул

Название

Примечание

Количество

1

87305295

ELECTRIC CABLE

W/Cab, Incl.10, 12, Serial Range: -C5184

1шт.

1

87314337

ELECTRIC CABLE

W/Cab, Incl.10, 12, 19, Start Serial: D5184

1шт.

2

83929594

DIODE

1шт.

3

5188081

WIRE HARNESS

W/Buzzer Module for Operator Presense Circut, W/CAB

1шт.

4

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

5

47135328

WIRE HARNESS

L/Cab, Incl.13, 17, 18, Serial Range: -C5184

1шт.

5

87314345

WIRE HARNESS

L/Cab, Incl.13, 17, 19, Start Serial: D5184

1шт.

6

47133651

ELECTRIC CABLE

, Serial Range: -C5184

1шт.

Transmission Harness

1шт.

6

87353315

WIRE HARNESS

, Start Serial: D5184

1шт.

Transmission Harness

1шт.

7

47124333

SPACER

1шт.

8

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

9

5150991

SENSOR

PTO SPEED, Pick-up Stem 30mm long, Serial Range: -C5042

1шт.

9

87564776

SENSOR

PTO Speed, Pick-up Stem 23.5mm long, Start Serial: D5042

1шт.

10

47137069

ELECTRIC CABLE

Rear Lamp Ext.

2шт.

11

10450690

CLAMP,20mm, Coat, 9mm Bolt Hole, P Type

1шт.

12

10399180

RING,12mm ID x 24mm OD x 11mm Thk

1шт.

12

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

2шт.

13

87304370

PROTECTION CAP

1шт.

14

5198244

DECAL

2шт.

15

14560487

CABLE TIE,132.5mm lg

CABLE STRAP

2шт.

16

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

CAN Bus Terminator

1шт.

17

10398480

GROMMET,18mm ID x 25mm Groove D x 33mm OD

1шт.

18

5193961

TUBE

1шт.

19

14560187

COLLAR,199mm L

L=203.2mm

1шт.

Выбрано товаров: 26
