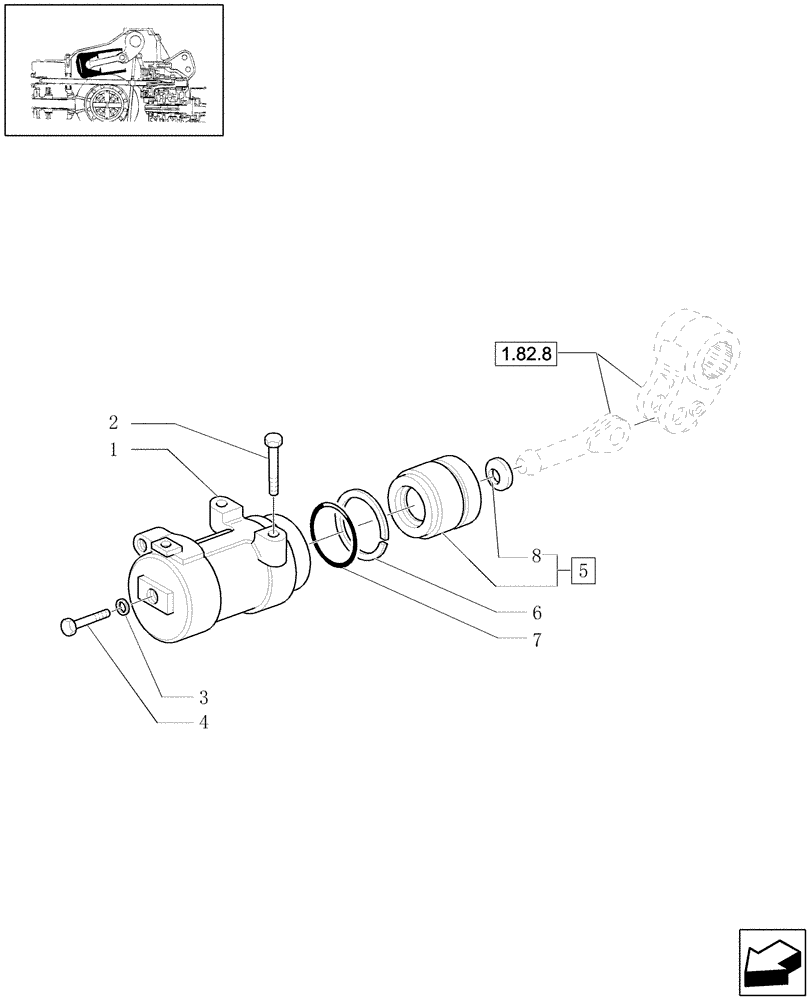

Запчасти Case IH JX1070U (1.82.6[01]) - LIFT - CYLINDER & PISTON (07) - HYDRAULIC SYSTEM

1

5131998

LIFT CYLINDER,86mm Bore Dia

1шт.

2

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

M16 x 1.5 x 75

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

15977531

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

1шт.

5

5132000

PISTON

1шт.

6

5125941

GUIDE RING,100mm ID x 110mm OD x 4.2mm Thk

1шт.

7

14465981

O-RING,98.02mm ID x 4.137" OD x 2.62mm

1шт.

8

573148

SEAT/SLOT

1шт.
