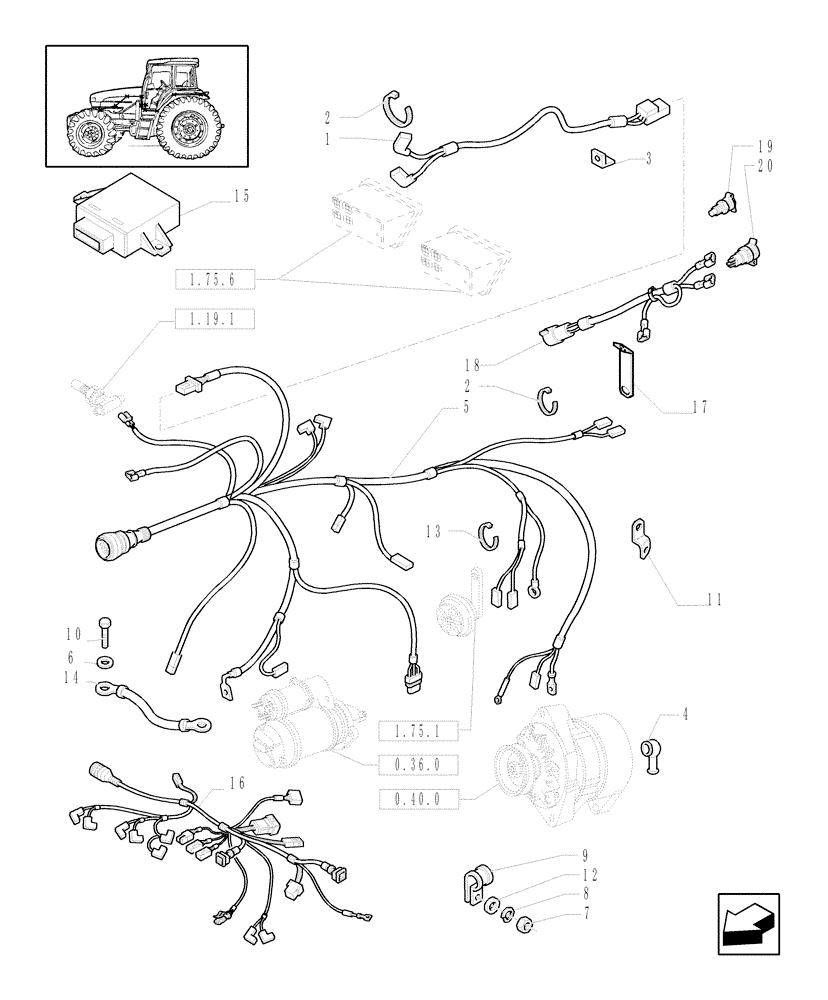

Запчасти Case IH JX1070U (1.75.4[01]) - VARIOUS ELECTRIC CABLES (06) - ELECTRICAL SYSTEMS

1

47126628

ELECTRIC CABLE

1шт.

Rear Lamps Extension

1шт.

2

5143429

CABLE TIE,116mm L

1шт.

3

5172920

BRACKET

1шт.

4

5182206

BOOT

L/Cab

1шт.

5

47135466

WIRE HARNESS

Engine, Serial Range: -C5190

1шт.

Engine Users Harness

1шт.

5

87317825

WIRE HARNESS

, Serial Range: D5190-C5476

1шт.

Engine Users Harness

1шт.

5

87535162

WIRE HARNESS

VAR.007, 039, Start Serial: D5476

1шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

6

10615674

WASHER

D=8

1шт.

7

12164714

NUT,M10 x 1.25, Cl 8

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

9

4951136

CLAMP

1шт.

10

14038014

SCREW,M8 x 15mm

M8x15

1шт.

11

5179441

BRACKET

1шт.

12

12605671

LOCK WASHER,Int Tooth, M10

1шт.

13

14560487

CABLE TIE,132.5mm lg

CABLE STRAP

1шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

14

5172968

GROUND STRAP

L/Cab

1шт.

14

5188352

GROUND STRAP

W/Cab

1шт.

15

82022809

FLASHER UNIT

TURN INDICATOR

1шт.

16

47133649

WIRE HARNESS

Transmission

1шт.

16

47133650

WIRE HARNESS

1шт.

W/Trailer Brake Valve ITALY

1шт.

17

47133011

BRACKET

1шт.

18

87341429

WIRE HARNESS

Front Lift Extension, VAR.075, 076, Start Serial: D5223

1шт.

19

5160258

POWER SOCKET

VAR.075, 076, Start Serial: D5223

1шт.

20

82039143

POWER SOCKET

VAR.075, 076, Start Serial: D5223

1шт.
