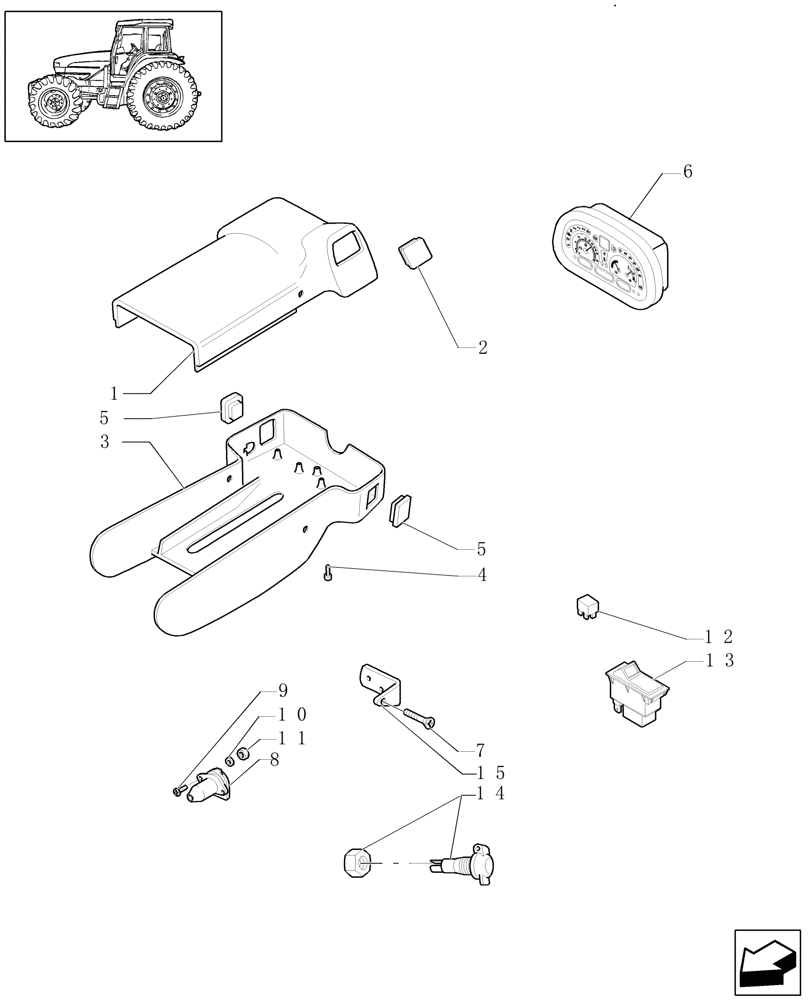

Запчасти Case IH JX1070U (1.75.1[01]) - OUTLET, CONTROL PANEL AND STEERING COLUMN COVER L/CAB (06) - ELECTRICAL SYSTEMS

1

82014494

COVER

Upper

1шт.

2

82004988

PLUG

1шт.

3

5179097

COVER

Lower

1шт.

4

13312718

SCREW,Pozidriv Oval Csk Hd, M6 x 10mm, Cl 5.8

4шт.

5

82004989

PLUG

2шт.

6

47132004

INSTRUMENT CLUSTER

Analog/Digital Basic, Includes Lights and Sockets, Serial Range: -C5184

1шт.

6

87517299

INSTRUMENT CLUSTER

Analog/Digital Basic, Includes Lights and Sockets, Serial Range: D5184-C5933

1шт.

6

87745384

INSTRUMENT CLUSTER

Includes Lights and Sockets, Start Serial: D5933

1шт.

7

13313118

SCREW,Pozidriv Oval Csk Hd, M6 x 18mm, Cl 5.8

1шт.

8

5170243

POWER SOCKET,25A

1шт.

9

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

10

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

11

10794014

NUT,M4, Cl 8

2шт.

12

5155318

RELAY,12V, 20A

4WD

1шт.

13

47128678

TOGGLE SWITCH

Calibration, Function, JX1090U, JX1100U

1шт.

14

82002966

POWER SOCKET,M18 x 1

1шт.

15

5199464

BRACKET

1шт.
