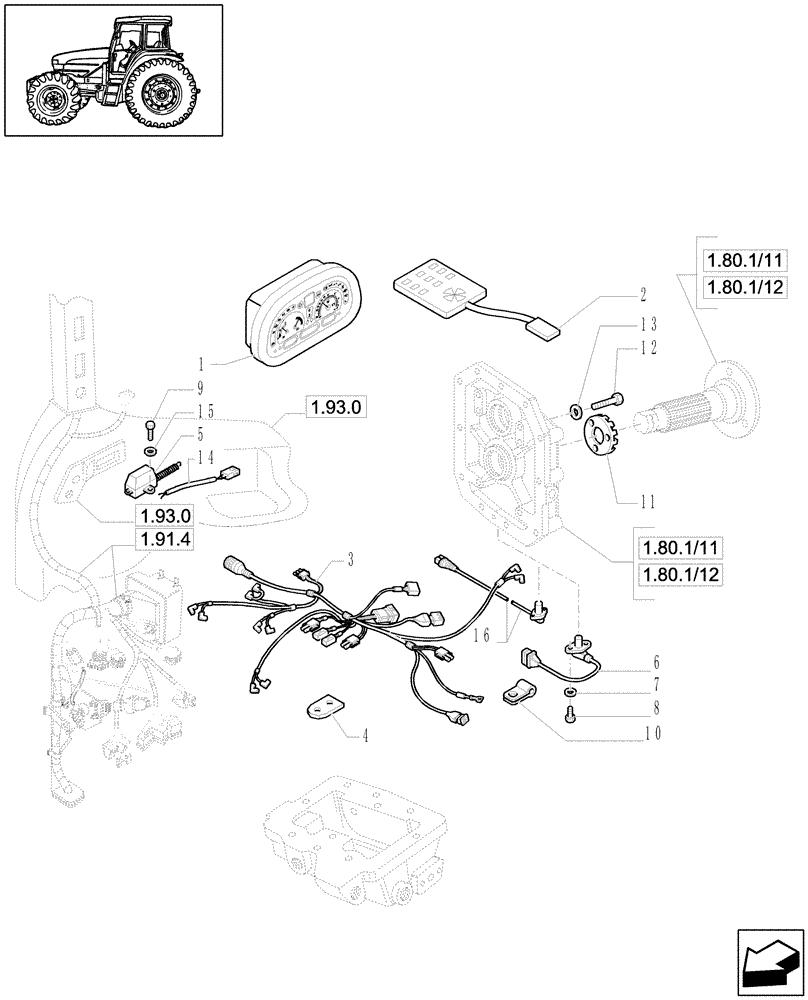

Запчасти Case IH JX1070U (1.75.0/04) - (VAR.745-746) DIGITAL INSTRUMENT CLUSTER (WITH CAB) - ELECTRIC CABLES - SENSORS (06) - ELECTRICAL SYSTEMS

1

47132006

INSTRUMENT CLUSTER

Analogue/Digital, Serial Range: -C5184

1шт.

1

87517297

INSTRUMENT CLUSTER

Analogue/Digital, Serial Range: D5184-C5933

1шт.

1

87745383

INSTRUMENT CLUSTER

, Start Serial: D5933

1шт.

2

47132007

PAD

KEY, Serial Range: -C5184

1шт.

2

87346619

KEYBOARD

KEY, Start Serial: D5184

1шт.

3

5198949

WIRE HARNESS

1шт.

4

5167199

PLATE

1шт.

5

5121786

LIGHT SWITCH

1шт.

6

5150991

SENSOR

PTO SPEED, Serial Range: -C5042

1шт.

7

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

9

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

10

5164323

CLAMP

(VAR. 745)

1шт.

11

5163279

WHEEL

(VAR. 745)

1шт.

12

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

(VAR. 745)

4шт.

13

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

(VAR. 745)

4шт.

14

5198899

WIRE HARNESS

1шт.

15

10571374

LOCK WASHER

2шт.

16

87564763

SENSOR

PTO SPEED, Start Serial: D5042

1шт.
