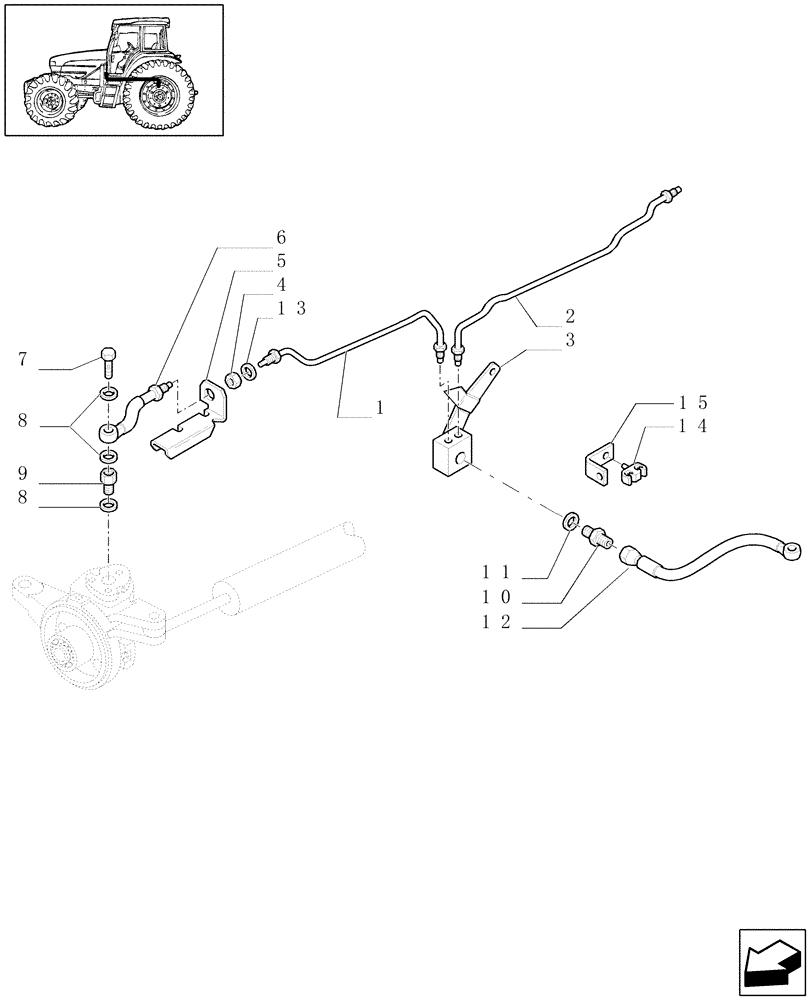

Запчасти Case IH JX1070U (1.68.5/06[01]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - BRAKE PIPES (05) - REAR AXLE

1

5181501

BRAKE LINE

RH

1шт.

2

5181502

BRAKE LINE

LH

1шт.

3

5182333

BLOCK

1шт.

4

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

5

5182988

BRACKET

RH

1шт.

5

5182989

ELBOW

LH

1шт.

6

5155700

HOSE,4.75mm ID x 315.00mm

, Serial Range: -C4949

2шт.

6

47136663

HOSE,4.75mm ID x 345mm L

, Start Serial: D4949

2шт.

7

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

6шт.

9

5182367

HYD CONNECTOR

2шт.

10

47131899

HYD CONNECTOR

1шт.

11

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

1шт.

12

5173912

HOSE,4.75mm ID x 1450mm L

1шт.

13

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

14

14575280

SPRING CLIP

1шт.

15

5182332

BRACKET

1шт.
