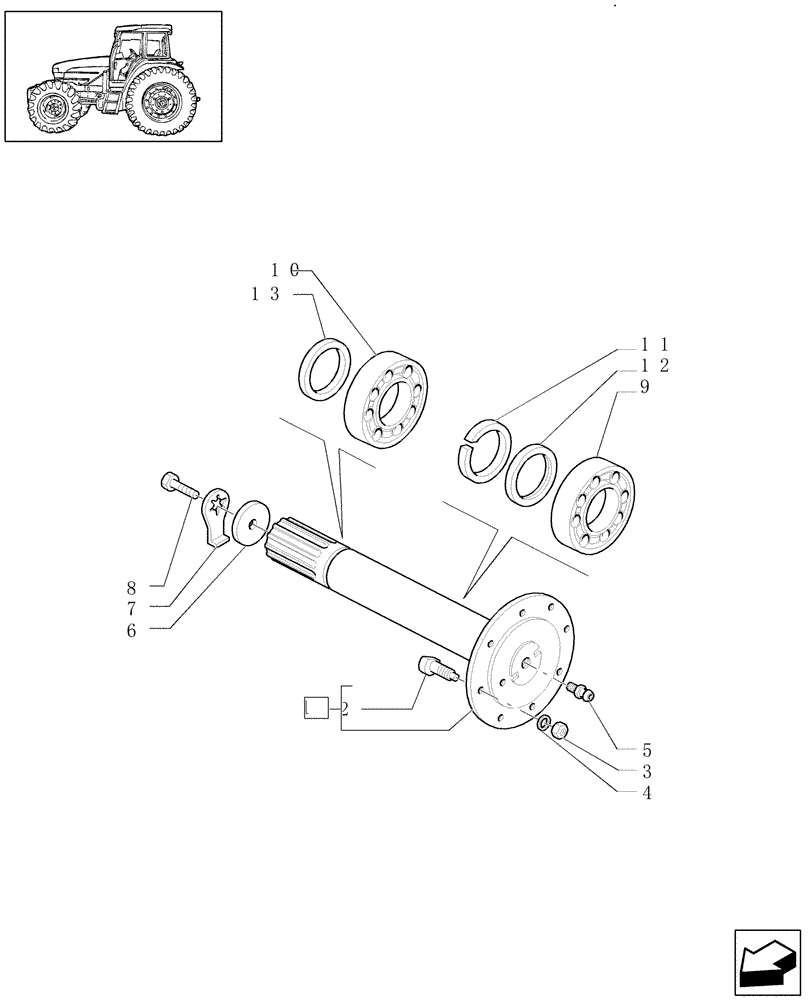

Запчасти Case IH JX1070U (1.48.1[02]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5167383

CONTROL SHAFT

2шт.

2

44011089

WHEEL BOLT

M18x56

16шт.

3

12164224

NUT,M18 x 1.5, Cl 10

16шт.

4

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

19x40x6

16шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

7

4997202

LOCKING PLATE,24.1mm ID x 28mm OD x 2mm Thk

2шт.

8

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

9

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65x120x23

2шт.

10

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

2шт.

11

5152729

SPACER,117mm ID x 121mm OD x 6.5mm L

2шт.

12

5135387

OIL SEAL,90mm ID x 120mm OD x 13mm Thk

90 x 120 x 13

2шт.

13

4997186

SHIM,60.2mm ID x 80mm OD x 4.5mm Thk

1шт.

13

4997187

SHIM,60.2mm ID x 80mm OD x 4.6mm Thk

1шт.

13

4997188

SHIM,60.2mm ID x 80mm OD x 4.7mm Thk

1шт.

13

4997189

SHIM,4.8mm Thk

1шт.

13

4997190

SHIM,4.9mm Thk

1шт.

13

4997191

SHIM,60.2mm ID x 80mm OD x 5mm Thk

1шт.

13

4997192

SHIM,5.1mm Thk

1шт.

13

4997193

SHIM,5.2mm Thk

1шт.

13

4997194

SHIM,5.3mm Thk

1шт.

13

4997195

SHIM,60.2mm ID x 80mm OD x 5.4mm Thk

1шт.

13

4997196

SHIM,5.5mm Thk

1шт.

13

4997197

SHIM,5.6mm Thk

1шт.

13

4997198

SHIM,5.7mm Thk

1шт.

13

4997199

SHIM,5.8mm Thk

1шт.
