(1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS

Запчасти Case IH JX1070U (1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

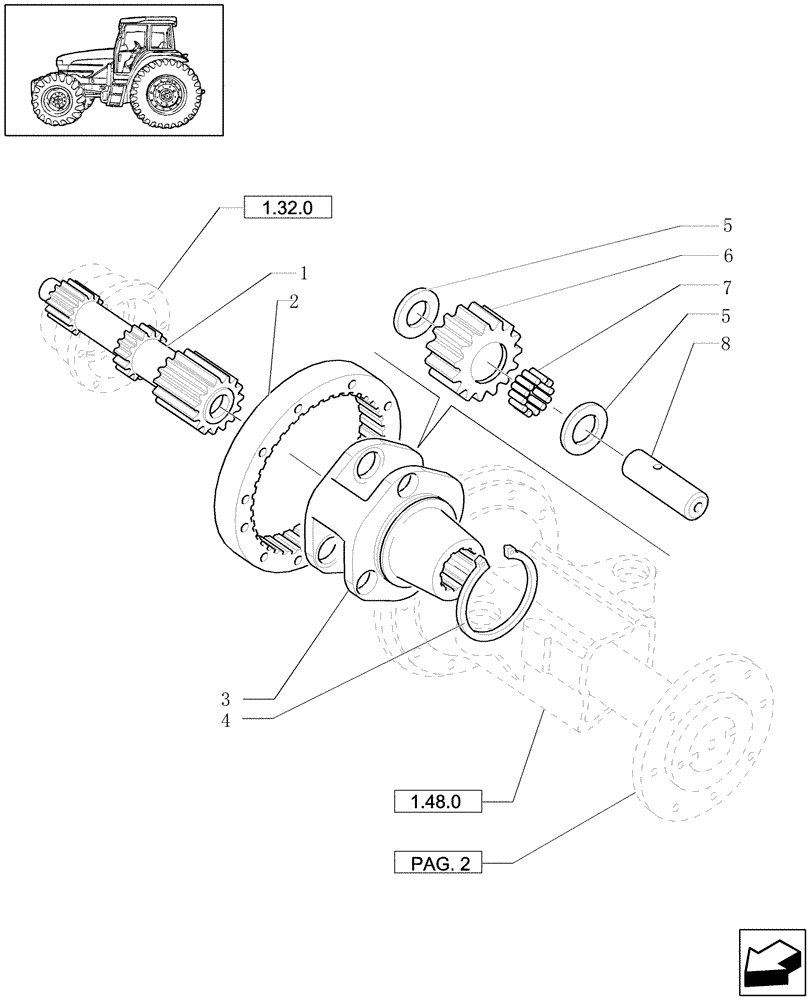

Схема запчастей Case IH JX1070U - (1.48.1[01]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE
4
1
6
5
7
2
8
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5125325

HALF SHAFT

RH

1шт.

1

5125326

HALF SHAFT

LH

1шт.

2

5125327

RING GEAR

2шт.

3

5152769

CARRIER

2шт.

4

4998883

CIRCLIP,112mm ID x 119mm OD

D = 119

2шт.

5

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

6

5125328

PLANETARY GEAR,24T

6шт.

7

5124311

ROLLER BEARING,35.7mm ID x 49.7mm OD x 32mm W

35.7 x 49.7 x 32

6шт.

8

5124312

PIN,35.7mm OD x 82mm L

6шт.
