Запчасти Case IH JX1070U (1.43.0/06[03]) - (VAR.486-487) DYNAMIC WIDE FRONT FENDERS (4WD) - SUPPORTS - ARMS (04) - FRONT AXLE & STEERING

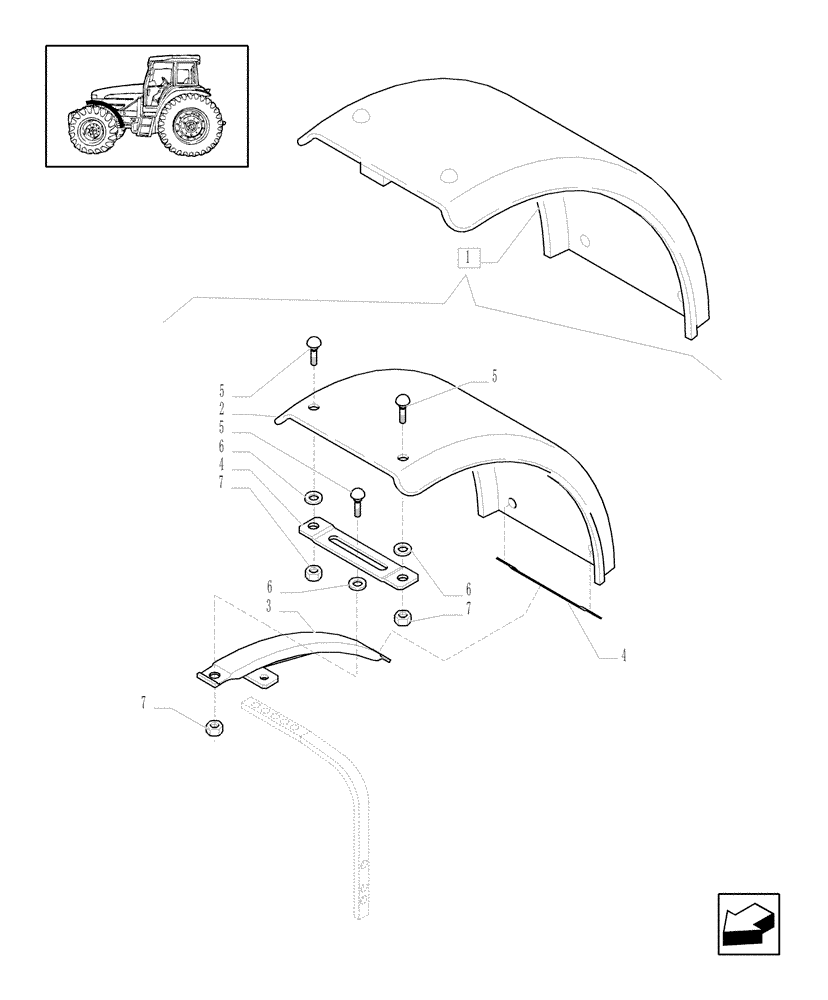

Схема запчастей Case IH JX1070U - (1.43.0/06[03]) - (VAR.486-487) DYNAMIC WIDE FRONT FENDERS (4WD) - SUPPORTS - ARMS (04) - FRONT AXLE & STEERING
7
5
4
2
7
5
5
4
7
6
1
6
6
3

Артикул

Название

Примечание

Количество

1

47132589

FRONT FENDER

, Serial Range: -C5408

2шт.

1

87529751

FRONT FENDER,400mm

Assy, Start Serial: D5408

2шт.

2

5122325

FRONT FENDER

, Serial Range: -C5408

2шт.

2

5185182

COVER ASSY

, Start Serial: D5408

2шт.

3

47132609

SUPPORT

2шт.

4

82021040

SUPPORT

4шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10x25

12шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

12шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.

Выбрано товаров: 9
