Запчасти Case IH JX1070U (1.43.0/06[02]) - (VAR.486-487) DYNAMIC WIDE FRONT FENDERS (4WD) - SUPPORTS - ARMS (04) - FRONT AXLE & STEERING

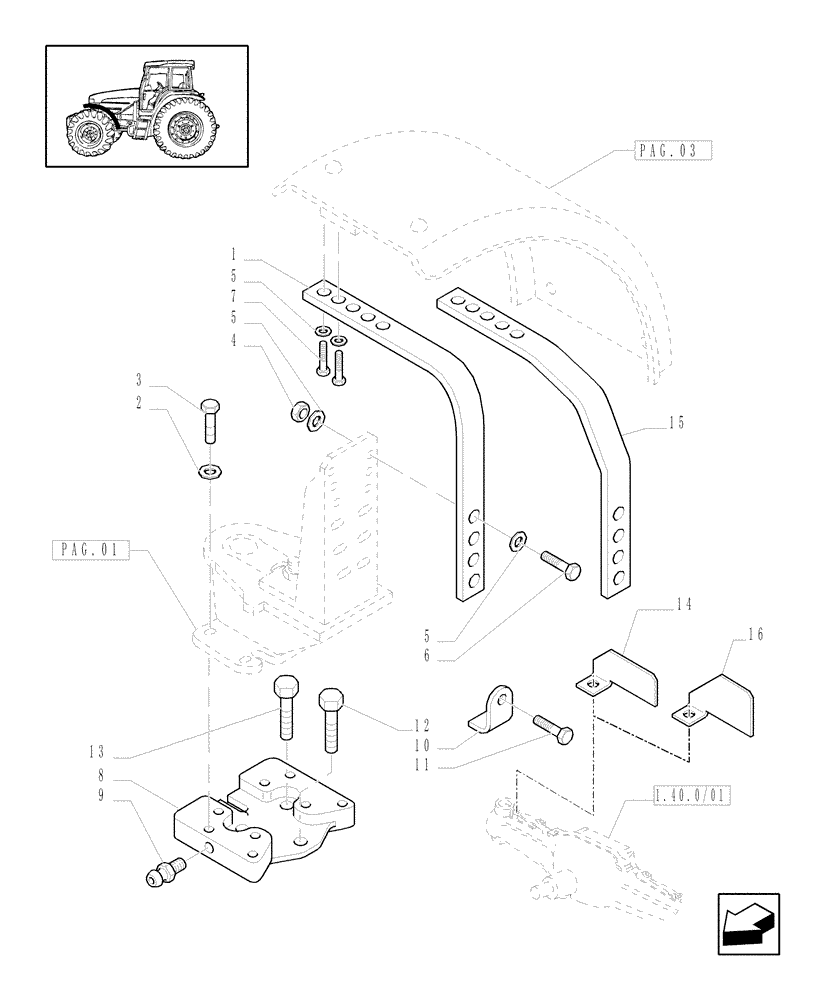

Схема запчастей Case IH JX1070U - (1.43.0/06[02]) - (VAR.486-487) DYNAMIC WIDE FRONT FENDERS (4WD) - SUPPORTS - ARMS (04) - FRONT AXLE & STEERING
4
2
12
1
5
14
1.40.0/01
3
pag.01
pag.03
15
7
11
8
5
13
9
5
10
6
16

Артикул

Название

Примечание

Количество

1

82027913

SUPPORT

, Serial Range: -C5408

2шт.

2

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

, Serial Range: -C5408

8шт.

3

15970824

SCREW,Hex, M10 x 1.25 x 32mm, Cl 8.8, Full Thd

, Serial Range: -C5408

8шт.

4

16105014

LOCK NUT,M12 x 1.25

4шт.

5

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

6

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

, Serial Range: -C5408

4шт.

6

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

, Start Serial: D5408

4шт.

7

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

, Serial Range: -C5408

4шт.

7

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

, Start Serial: D5408

4шт.

8

47132605

BRACKET

RH, VAR.486

1шт.

8

47132603

BRACKET

LH, VAR.486

1шт.

8

5198881

PLATE

LH, VAR.487

1шт.

8

5198882

BRACKET

RH, VAR.487

1шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

47123187

BRACKET

, Serial Range: -EKT001393

2шт.

11

5189806

SCREW

, Serial Range: -EKT001393

2шт.

12

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

13

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

14

47137735

BRACKET

LH, VAR.486, Serial Range: EKT001394-C5408

1шт.

14

47137759

BRACKET

RH, VAR.486, Serial Range: EKT001394-C5408

1шт.

14

47137760

BRACKET

LH, VAR.487, Start Serial: EKT001429

1шт.

14

47137761

BRACKET

RH, VAR.487, Start Serial: EKT001429

1шт.

15

87390029

SUPPORT

, Start Serial: D5408

2шт.

16

87527760

BRACKET

LH, Start Serial: D5408

1шт.

16

87527759

BRACKET

RH, Start Serial: D5408

1шт.

Выбрано товаров: 25
