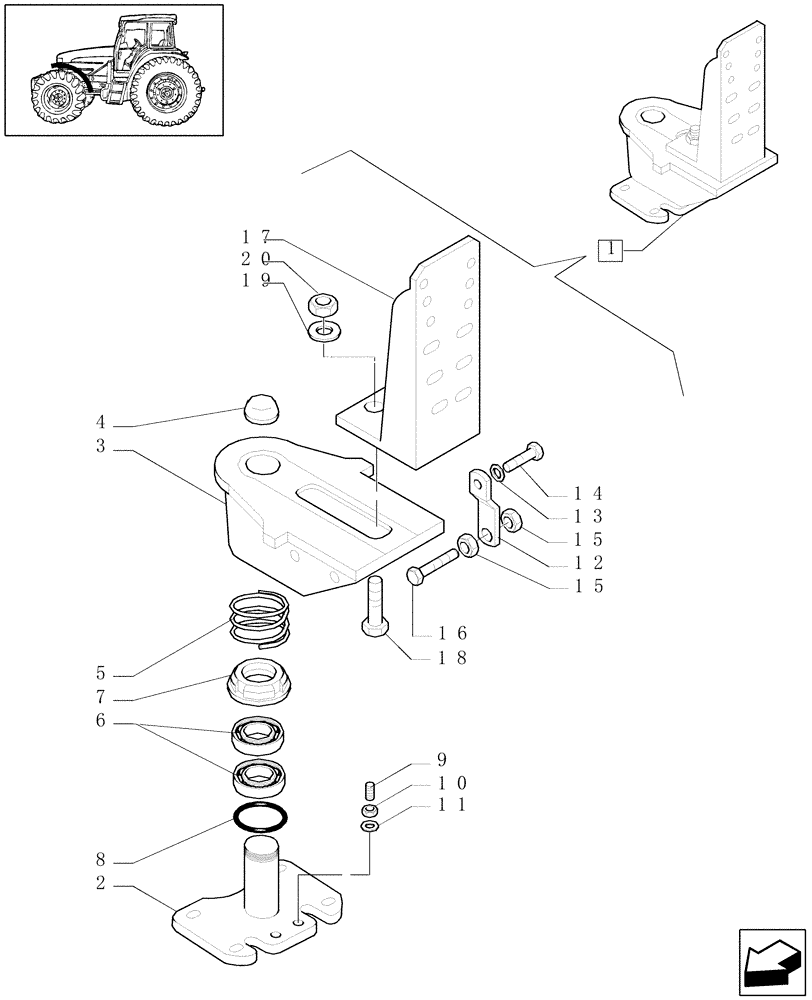

Запчасти Case IH JX1070U (1.43.0/06[01]) - (VAR.486-487) DYNAMIC WIDE FRONT FENDERS (4WD) - SUPPORTS - ARMS - C4946 (04) - FRONT AXLE & STEERING

1

47132612

SUPPORT

RH

1шт.

1

47132615

SUPPORT

LH

1шт.

2

47132623

SUPPORT

2шт.

3

47132624

HUB

2шт.

4

47132625

COVER

2шт.

5

47132626

SPRING

2шт.

6

47132628

ROLLER BEARING,25mm ID x 47mm OD x 15mm W

4шт.

7

47132629

LOCK NUT,M25 x 1.5 ZG

2шт.

8

47132630

O-RING,2.62mm Thk x 50mm ID

2шт.

9

47132631

DOWEL,M14 x 1.5mm

M14X1.5

2шт.

10

10791311

THIN NUT,M14 x 1.5, Cl 04

2шт.

11

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

2шт.

12

47132635

PLATE

2шт.

13

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

2шт.

14

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

15

12164711

NUT,M10 x 1.25, Cl 8

4шт.

16

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

17

47132636

SUPPORT

2шт.

18

47132633

SCREW,M18 x 1.5, Cl 8.8

M18

2шт.

19

14489601

WASHER,19mm ID x 34mm OD x 3mm Thk

2шт.

20

47132634

NUT,M18, 1.5mm Pitch

M18

2шт.
