Запчасти Case IH JX1070U (1.43.0/05[02]) - (VAR.860) FRONT FENDERS - 4WD (04) - FRONT AXLE & STEERING

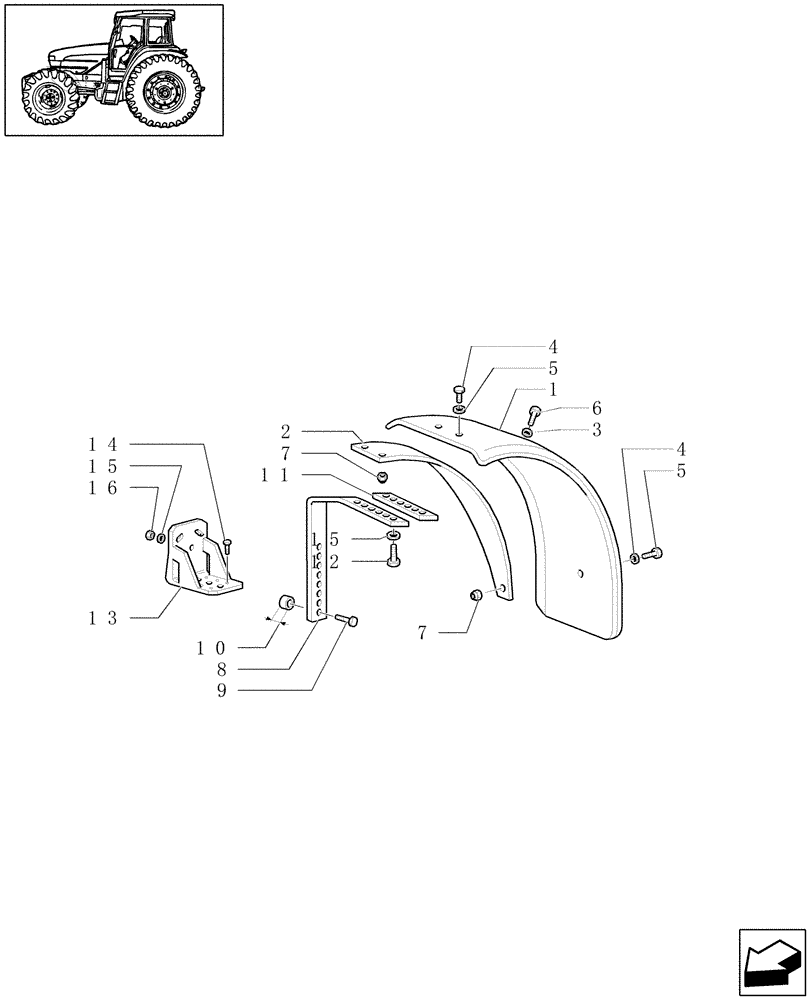

Схема запчастей Case IH JX1070U - (1.43.0/05[02]) - (VAR.860) FRONT FENDERS - 4WD (04) - FRONT AXLE & STEERING
11
6
9
13
4
2
3
7
8
5
15
4
5
16
12
1
15
14
10
7

Артикул

Название

Примечание

Количество

1

5137714

COVER ASSY

L = MM310

2шт.

2

5170179

PANEL

LH

1шт.

2

5170180

PANEL

RH

1шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

4

14780511

SCREW,Cross Rec Cheese Hd, M8 x 25mm, Cl 5.8

6шт.

5

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

6шт.

6

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

4шт.

7

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

6шт.

8

82004197

SUPPORT

LH

1шт.

8

82004198

SUPPORT

RH

1шт.

9

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

4шт.

9

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

4шт.

10

5166179

SPACER

13X40X10

4шт.

10

5166193

SPACER,13mm ID x 40mm OD x 28mm L

13X40X28

4шт.

11

5170181

PLATE

2шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

5170178

SUPPORT

2шт.

14

14233931

LOCK BOLT,Self Lkg, M10 x 1.25 x 45mm

M10X45

6шт.

15

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

8шт.

16

16105014

LOCK NUT,M12 x 1.25

4шт.

Выбрано товаров: 20
