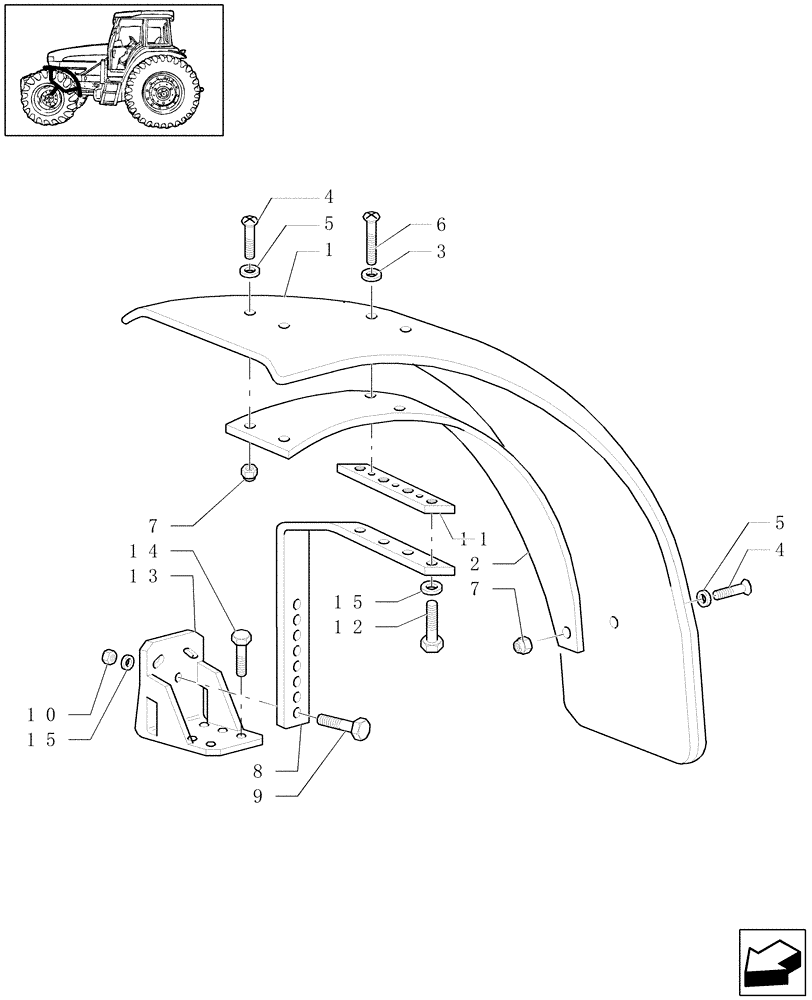

Запчасти Case IH JX1070U (1.43.0/01[01]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - MUDGUARDS (04) - FRONT AXLE & STEERING

1

5152553

FRONT FENDER

2шт.

2

5170179

PANEL

LH

1шт.

2

5170180

PANEL

RH

1шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

4

14780511

SCREW,Cross Rec Cheese Hd, M8 x 25mm, Cl 5.8

6шт.

5

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

6шт.

6

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

4шт.

7

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

6шт.

8

5152352

ARM

RH

1шт.

8

5152353

ARM

LH

1шт.

9

15541024

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8

4шт.

10

16105014

LOCK NUT,M12 x 1.25

4шт.

11

5170181

PLATE

2шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

5186007

SUPPORT

2шт.

14

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

15

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

8шт.
