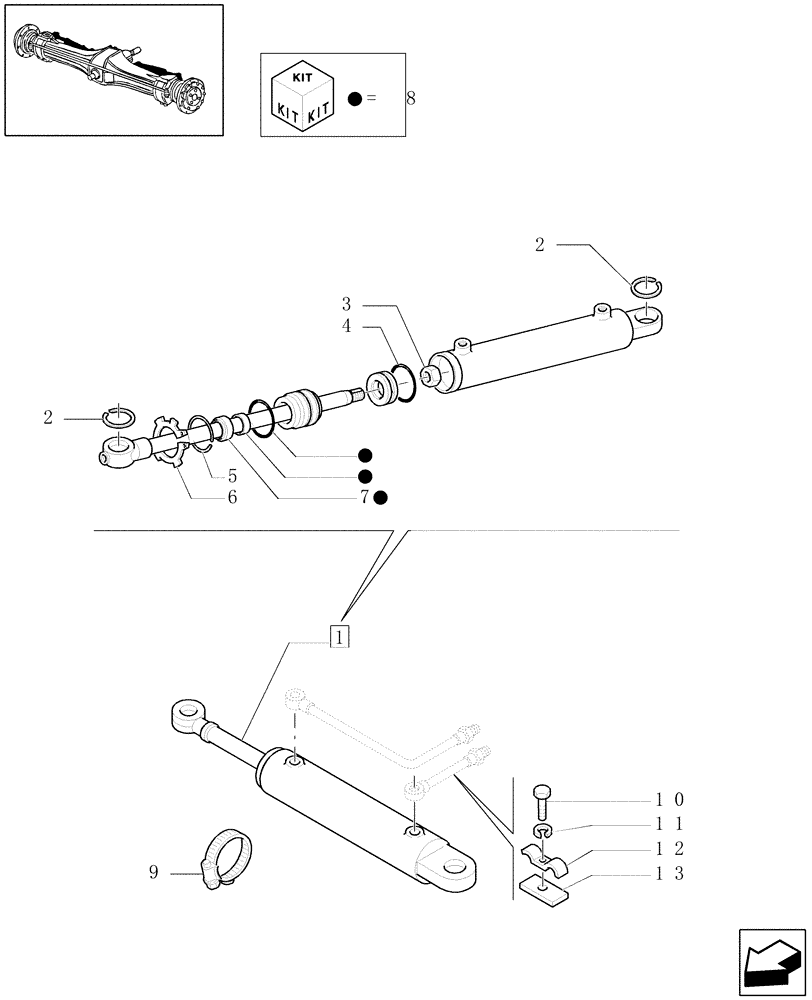

Запчасти Case IH JX1070U (1.40. 9/01[01]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER,PARTS (04) - FRONT AXLE & STEERING

1

5189887

STEERING CYLINDER,Double Acting, 22mm Rod, 128mm Stroke

1шт.

2

5190903

LOCKING RING

2шт.

3

5190904

LOCK NUT

1шт.

4

5190909

SEAL

1шт.

5

5190912

LOCKING RING

1шт.

6

5190907

SNAP RING

1шт.

7

5190911

SEAL

1шт.

8

5190591

SEAL KIT

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

4999554

CLAMP,2 Hoses

1шт.

13

5138294

SUPPORT

1шт.
