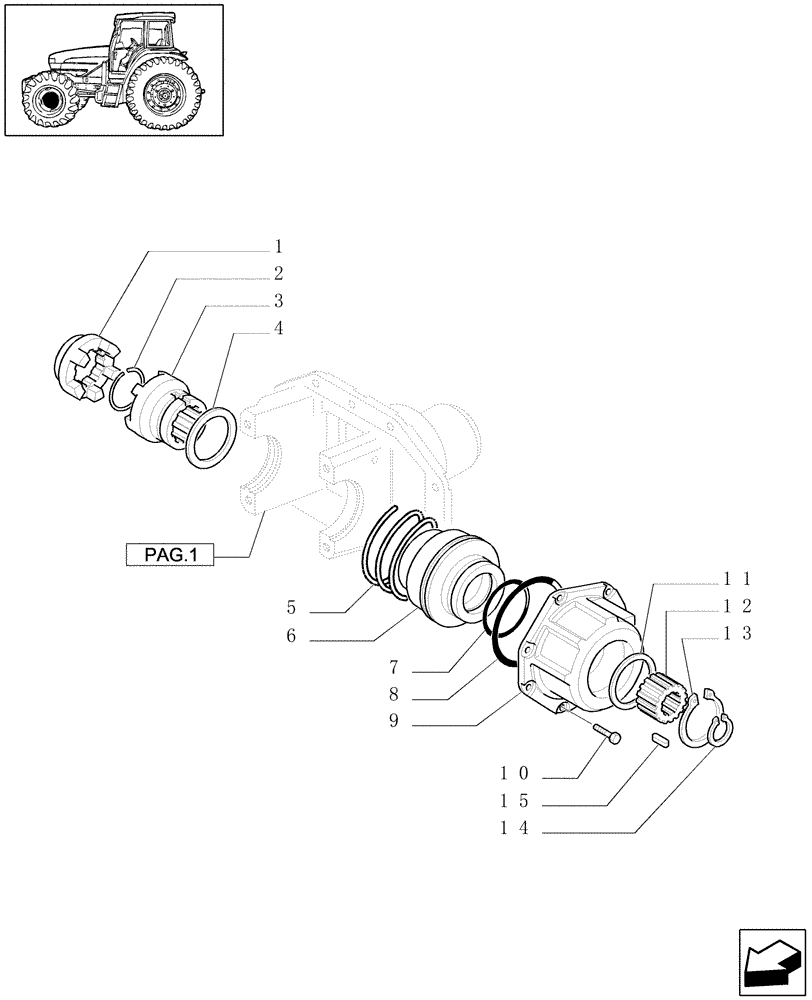

Запчасти Case IH JX1070U (1.40. 6/03[03]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - SLEEVES (04) - FRONT AXLE & STEERING

1

5167764

SLEEVE,50mm ID x 80mm OD x 29mm L

1шт.

2

5167721

SNAP RING,M50, Int

1шт.

3

5167747

SLEEVE,18T

1шт.

4

5167763

THRUST WASHER,67.5mm ID x 80mm OD x 2.8mm Thk

1шт.

5

5167827

SPRING,Compression, 110mm OD x 75mm L

1шт.

6

5167749

PISTON

1шт.

7

14465681

O-RING,3.484" ID x 3.762" OD x 0.139"

1шт.

8

14466581

O-RING,117.07mm ID x 4.887" OD x 3.53mm

1шт.

9

5167740

HOUSING

1шт.

10

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

6шт.

11

5167748

THRUST WASHER,65.2mm ID x 80mm OD x 3mm Thk

1шт.

12

5167762

GEAR,18T

1шт.

13

11070076

SNAP RING,M65, Ext

1шт.

14

11067876

SNAP RING,M30, Ext

2шт.

15

14724820

KEY,8mm x 7mm x 36mm

1шт.
