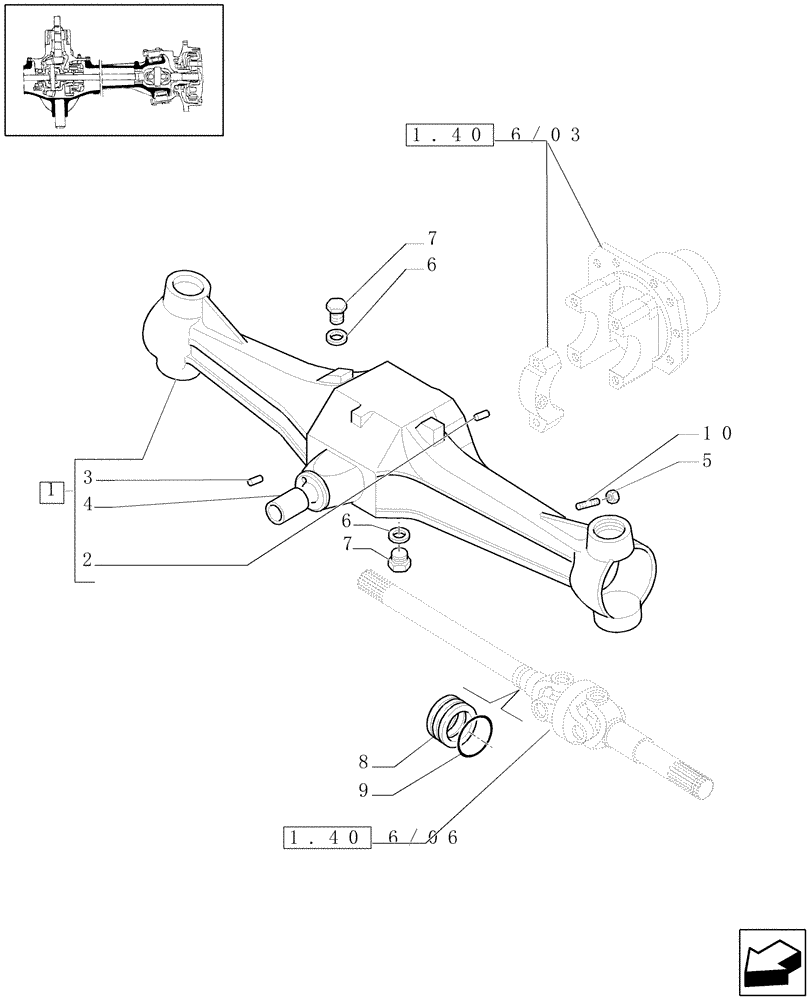

Запчасти Case IH JX1070U (1.40. 6/01[01]) - (VAR.325) STANDARD - FRONT AXLE CASING (04) - FRONT AXLE & STEERING

1

5165117

AXLE HOUSING

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

16101524

NUT,M12 x 1.25, Cl 10

2шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

7

10305171

PLUG,M22 x 1.5 x 21

2шт.

8

4997348

SLEEVE

2шт.

9

14460680

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

2шт.

10

87309002

SET SCREW

M12x1.25x65

2шт.
