Запчасти Case IH JX1070U (1.40. 2/06) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - POWER STEERING CYLINDERS (04) - FRONT AXLE & STEERING

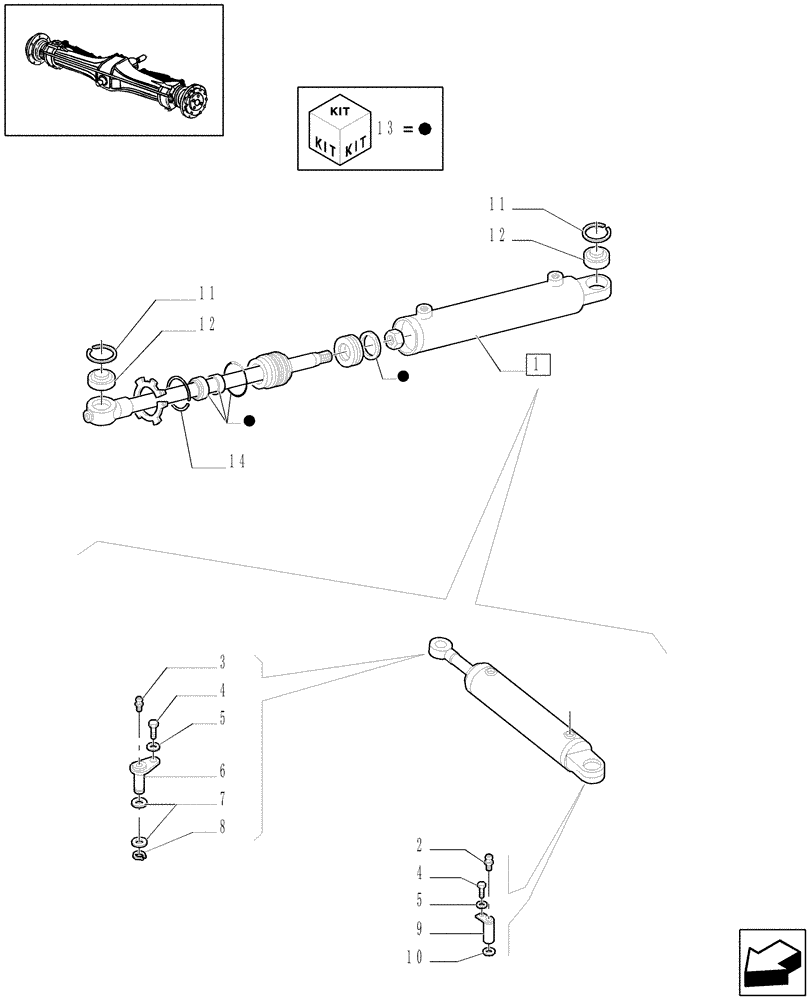

Схема запчастей Case IH JX1070U - (1.40. 2/06) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - POWER STEERING CYLINDERS (04) - FRONT AXLE & STEERING
7
2
3
4
8
12
11
9
13
14
13
1
10
6
11
5
5
13
12
13
4

Артикул

Название

Примечание

Количество

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX1070U (1/04-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

2шт.

3

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

7

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

8

11066876

SNAP RING,M20, Ext

2шт.

9

5165265

PIN,19.99mm OD x 100mm L

2шт.

10

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

20.5 x 28 x 16

2шт.

11

5190903

LOCKING RING

4шт.

12

5190901

BUSHING

4шт.

13

5190916

SEAL KIT

2шт.

14

5190568

LOCKING RING

1шт.

Выбрано товаров: 16
