Запчасти Case IH JX1070U (1.40. 2/03) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - BOX AND SIDE PINIONS (04) - FRONT AXLE & STEERING

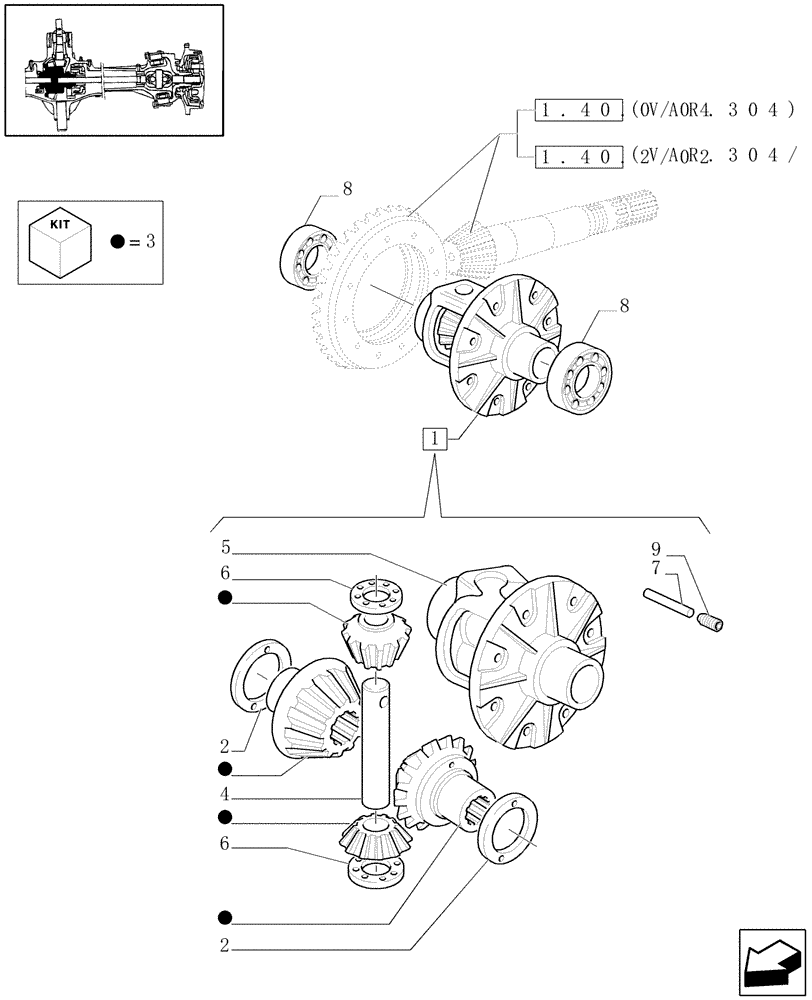

Схема запчастей Case IH JX1070U - (1.40. 2/03) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - BOX AND SIDE PINIONS (04) - FRONT AXLE & STEERING
(var.304/1)
(var.304)
3
1
3
2
3
1.40.0/04
1.40.2/02
4
6
3
3
5
6
8
3
9
7
8
2

Артикул

Название

Примечание

Количество

1

5167879

DIFFERENTIAL GEAR

1шт.

2

5167655

THRUST WASHER,30.2mm ID x 54mm OD x 1.5mm Thk

1шт.

2

5167694

THRUST WASHER,30.2mm ID x 54mm OD x 1.6mm Thk

1шт.

2

5167702

THRUST WASHER,30.2mm ID x 54mm OD x 1.7mm Thk

1шт.

2

5167703

THRUST WASHER,30.2mm ID x 54mm OD x 1.8mm Thk

1шт.

2

5183693

THRUST WASHER,30.2mm ID x 54mm OD x 1.9mm Thk

1шт.

2

5183694

THRUST WASHER,30.2mm ID x 54mm OD x 2mm Thk

1шт.

3

87523074

KIT

1шт.

4

5103612

PIN,22mm OD x 123mm L

1шт.

5

5174802

HOUSING

1шт.

6

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

2шт.

7

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5 x 6.5

1шт.

8

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

Roller/Taper, 50 x 90 x 21.75

2шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

Выбрано товаров: 14
