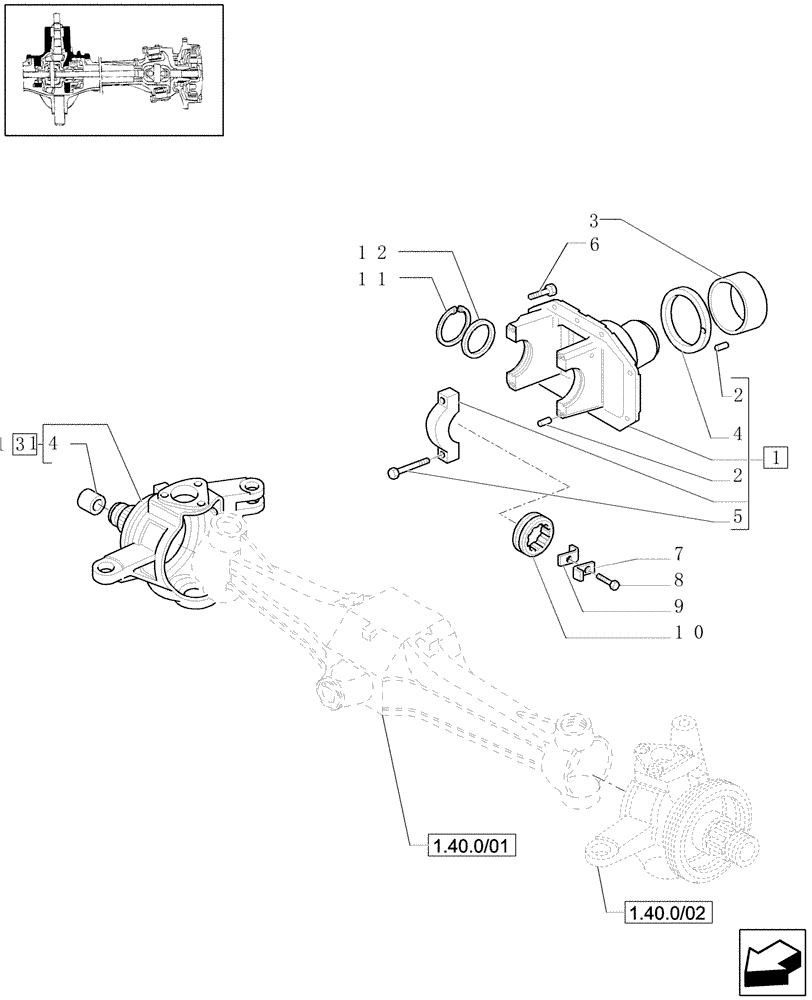

Запчасти Case IH JX1070U (1.40. 2/01) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLIND. 30-40 KM/H - STEERING PIVOT PIN AND SUPPORT (04) - FRONT AXLE & STEERING

1

5167765

SUPPORT

1шт.

2

4966244

PIN,5mm OD x 15mm L

M5 x 15

6шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

5

14275430

SCREW,M12 x 1.25 x 80mm

M12 x 80

4шт.

6

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

8шт.

7

562659

PLATE

1шт.

8

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

9

4966243

ADJUSTING PLATE

1шт.

10

4966240

BEARING LOCK NUT,M95 x 2, 15T

M95

1шт.

11

80370013

SNAP RING

D = 90

1шт.

12

5167750

SHIM,0.90mm Thk

1шт.

12

5167751

SHIM,1.00mm Thk

1шт.

12

5167752

SHIM,1.10mm Thk

1шт.

12

5167753

SHIM,1.20mm Thk

1шт.

12

5167754

SHIM,1.30mm Thk

1шт.

12

5167755

SHIM,1.40mm Thk

1шт.

12

5167756

SHIM,1.50mm Thk

1шт.

12

5167757

SHIM,1.60mm Thk

1шт.

12

5167758

SHIM,1.70mm Thk

1шт.

12

5167759

SHIM,1.80mm Thk

1шт.

12

5167760

SHIM,1.90mm Thk

1шт.

12

5167761

SHIM,2.00mm Thk

1шт.

13

5173285

KNUCKLE

RH

1шт.

14

5105321

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

1шт.
