(1.40.10/10A) - FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDR. LOCK - AXLE SHAFTS

Запчасти Case IH JX1070U (1.40.10/10A) - FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDR. LOCK - AXLE SHAFTS (04) - FRONT AXLE & STEERING

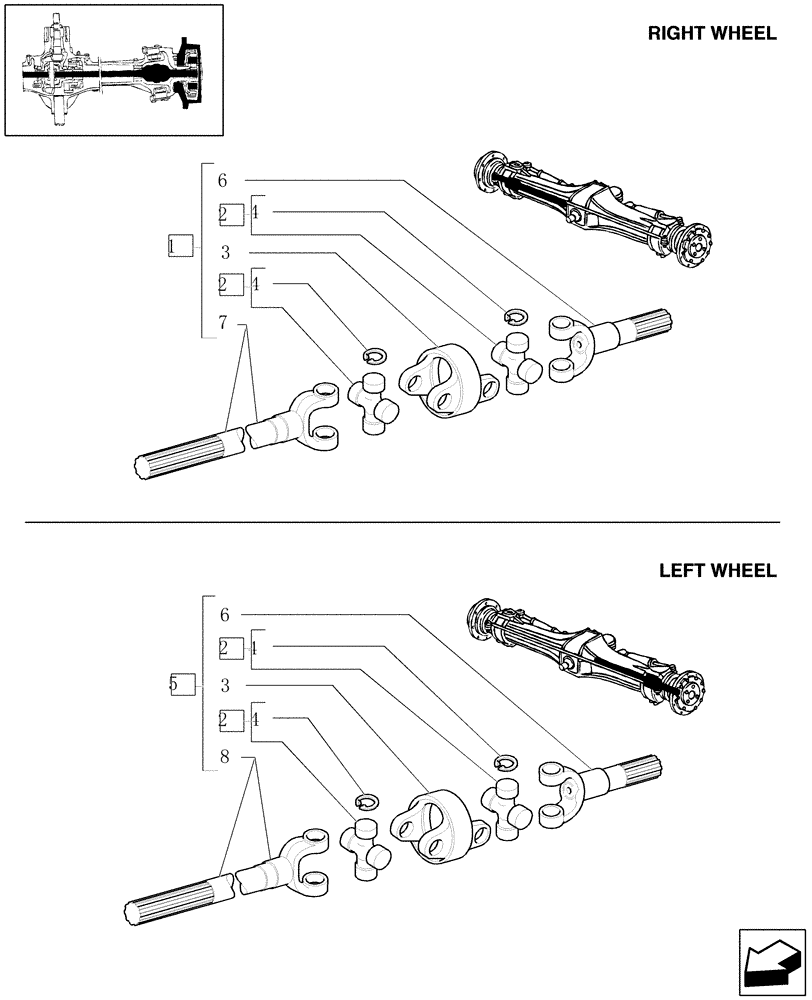

Схема запчастей Case IH JX1070U - (1.40.10/10A) - FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDR. LOCK - AXLE SHAFTS (04) - FRONT AXLE & STEERING
7
4
4
4
4
2
3
2
6
8
2
3
6
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186664

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191024

SPIDER

4шт.

3

5191027

YOKE

2шт.

4

80278643

CIRCLIP

16шт.

5

5186663

ARTICULATED SHAFT

LH

1шт.

6

5191412

SHAFT

2шт.

7

5191414

SHAFT

1шт.

8

5191415

SHAFT

1шт.
