(1.40.10/10) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDR. LOCK - AXLE SHAFTS

Запчасти Case IH JX1070U (1.40.10/10) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDR. LOCK - AXLE SHAFTS (04) - FRONT AXLE & STEERING

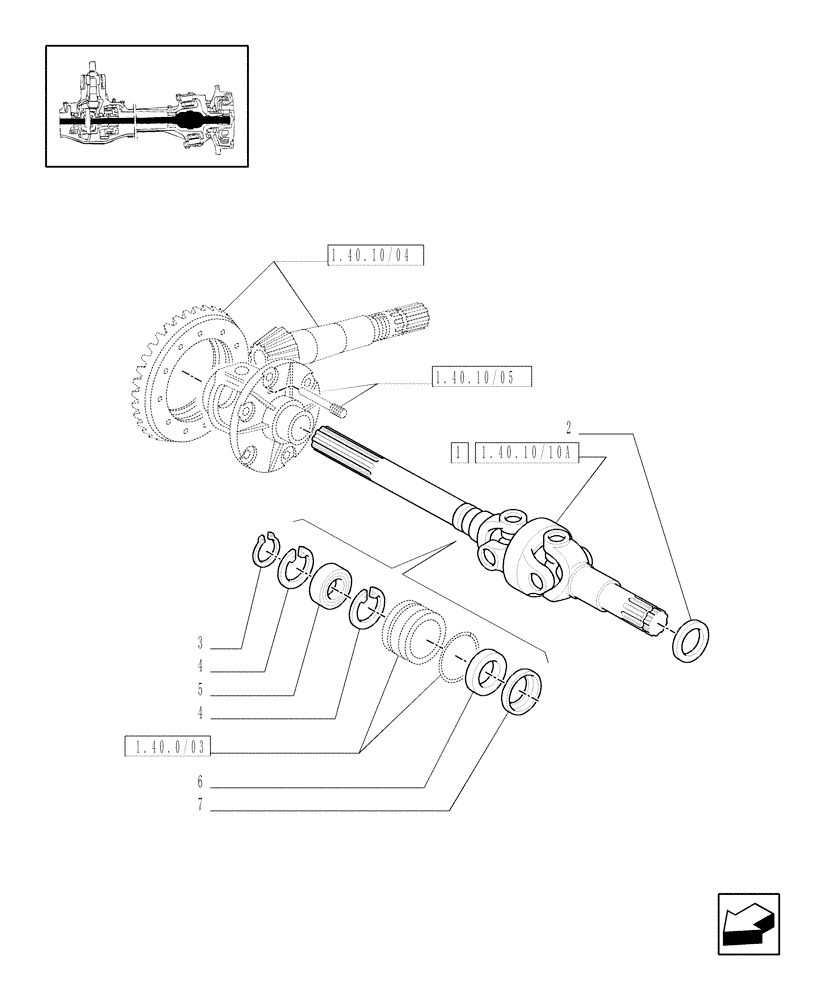

Схема запчастей Case IH JX1070U - (1.40.10/10) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDR. LOCK - AXLE SHAFTS (04) - FRONT AXLE & STEERING
2
4
4
7
1.40.10/05
1.40.10/04
6
5
1.40.0/03
3
1
1.40.10/10a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186663

ARTICULATED SHAFT

LH

1шт.

1

5186664

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

47X65X16.5

2шт.

3

80370003

CIRCLIP

Ext, M30

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.
