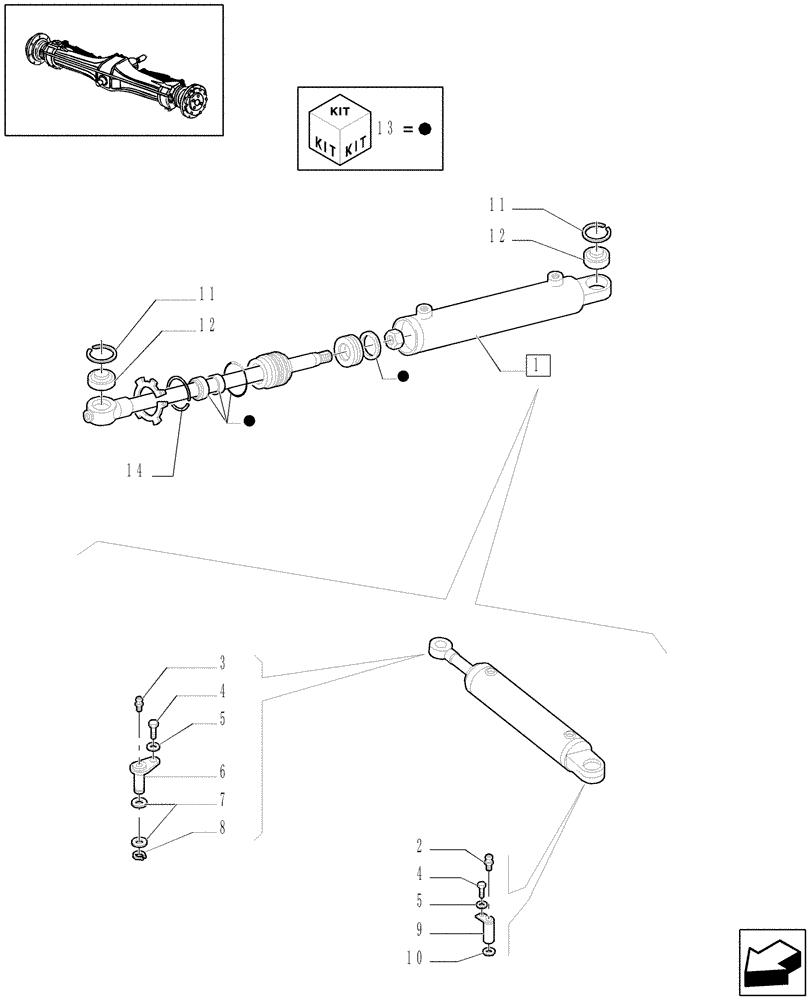

Запчасти Case IH JX1070U (1.40.10/07) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - CYLINDERS (04) - FRONT AXLE & STEERING

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX1070U (1/04-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

3

13406914

LUBE NIPPLE

1/14"-28

2шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

7

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

8

11066876

SNAP RING,M20, Ext

2шт.

9

5165265

PIN,19.99mm OD x 100mm L

2шт.

10

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

11

5190903

LOCKING RING

4шт.

12

5190901

BUSHING

4шт.

13

5190916

SEAL KIT

2шт.

14

5190568

LOCKING RING

1шт.
