Запчасти Case IH JX1070U (1.40.10/04[02]) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - SHIMS (04) - FRONT AXLE & STEERING

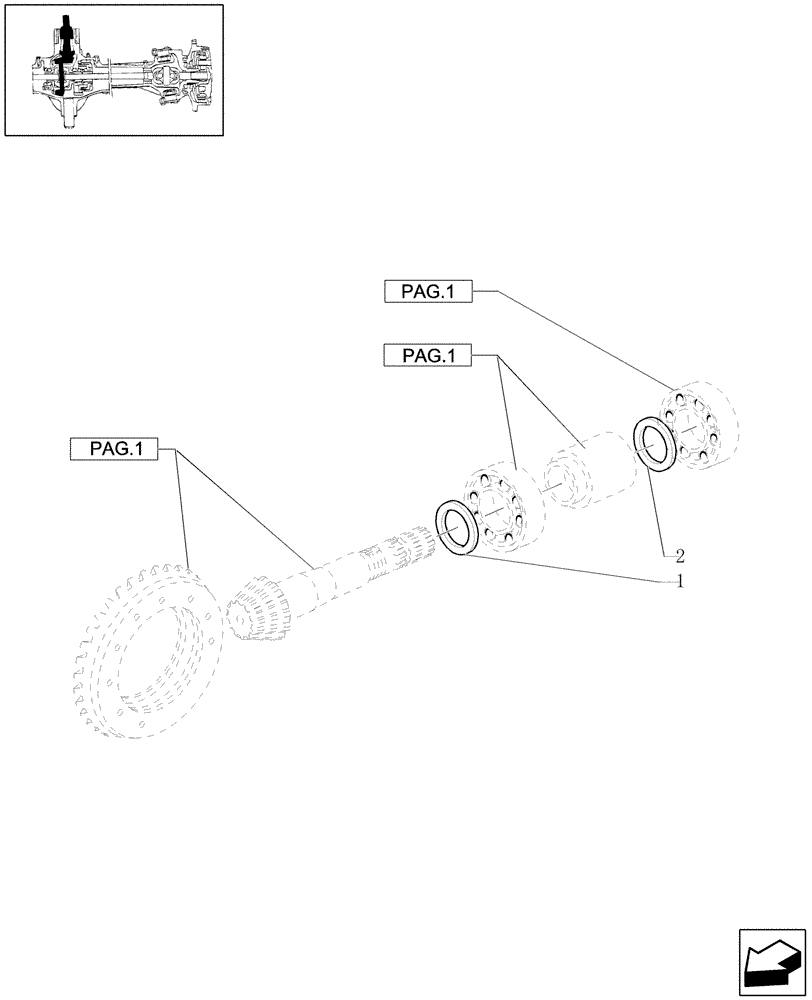

Схема запчастей Case IH JX1070U - (1.40.10/04[02]) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - SHIMS (04) - FRONT AXLE & STEERING
2
1

Артикул

Название

Примечание

Количество

1

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

1

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

1

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

1

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

1

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

1

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

1

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

1

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

1

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

1

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

1

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

1

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

1

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

2

5169313

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.75mm Thk

1шт.

2

5169314

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.80mm Thk

1шт.

2

5169315

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.85mm Thk

1шт.

2

5169316

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.90mm Thk

1шт.

2

5169317

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.95mm Thk

1шт.

2

5169318

SHIM,35.1mm ID x 43mm OD x 4mm Thk

1шт.

2

5169319

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.05mm Thk

1шт.

2

5169320

SHIM,35.1mm ID x 43mm OD x 4.1mm Thk

1шт.

2

5169321

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.15mm Thk

1шт.

2

5169322

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.20mm Thk

1шт.

2

5169323

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.25mm Thk

1шт.

2

5169324

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.30mm Thk

1шт.

2

5169325

SHIM,35.1mm ID x 43mm OD x 4.35mm Thk

1шт.

2

5169326

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.40mm Thk

1шт.

2

5169327

SHIM,35.1mm ID x 43mm OD x 4.45mm Thk

1шт.

2

5169328

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.50mm Thk

1шт.

2

5169329

SHIM,35.1mm ID x 43mm OD x 4.55mm Thk

1шт.

2

5169330

SHIM,35.1mm ID x 43mm OD x 4.6mm Thk

1шт.

2

5169331

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.65mm Thk

1шт.

2

5169332

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.70mm Thk

1шт.

2

5169333

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.75mm Thk

1шт.

2

5169334

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.80mm Thk

1шт.

2

5101236

SHIM,35.00mm ID x 43.00mm OD x 3.50mm Thk

1шт.

2

5129161

SHIM,35.00mm ID x 43.00mm OD x 3.55mm T

1шт.

2

5101237

SHIM,35.00mm ID x 43.00mm OD x 3.60mm T

1шт.

2

5129162

SHIM,35.00mm ID x 43.00mm OD x 3.65mm T

1шт.

2

5101238

SHIM,35.00mm ID x 43.00mm OD x 3.70mm T

1шт.

Выбрано товаров: 40
