(1.40.10/02[02]) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - HUBS

Запчасти Case IH JX1070U (1.40.10/02[02]) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - HUBS (04) - FRONT AXLE & STEERING

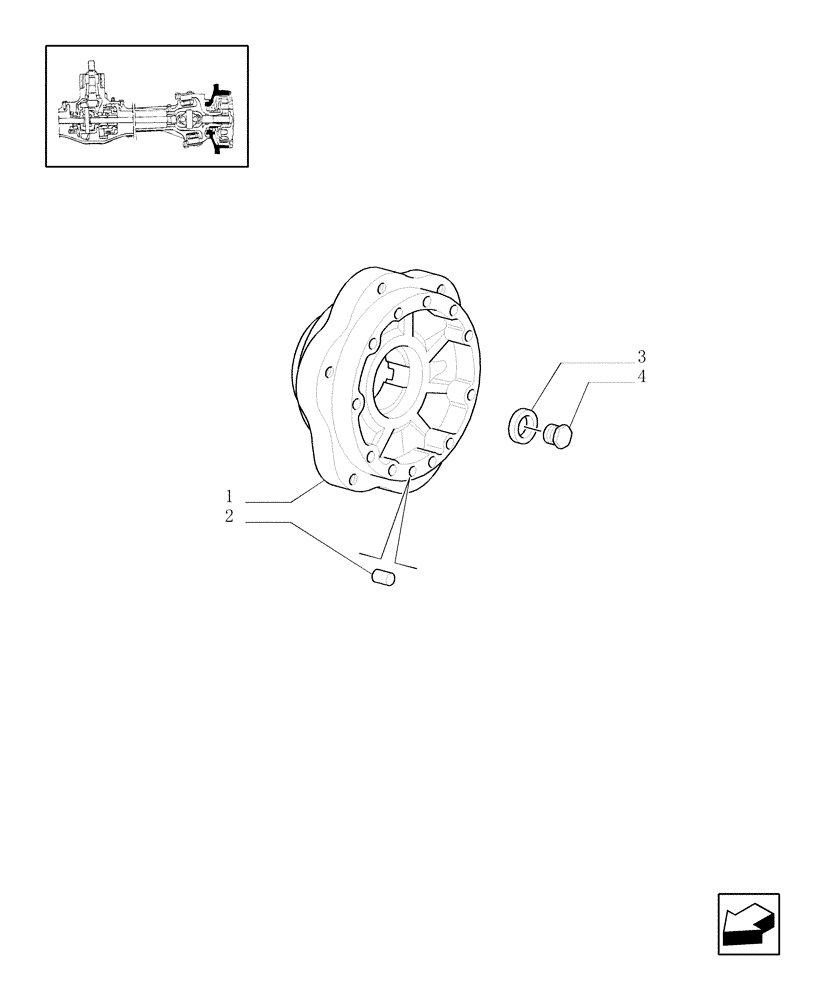

Схема запчастей Case IH JX1070U - (1.40.10/02[02]) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - HUBS (04) - FRONT AXLE & STEERING
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5178631

HUB

2шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

4шт.

3

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

10278340

PLUG,M28 x 1.5 x 11, Brass

M28

2шт.
