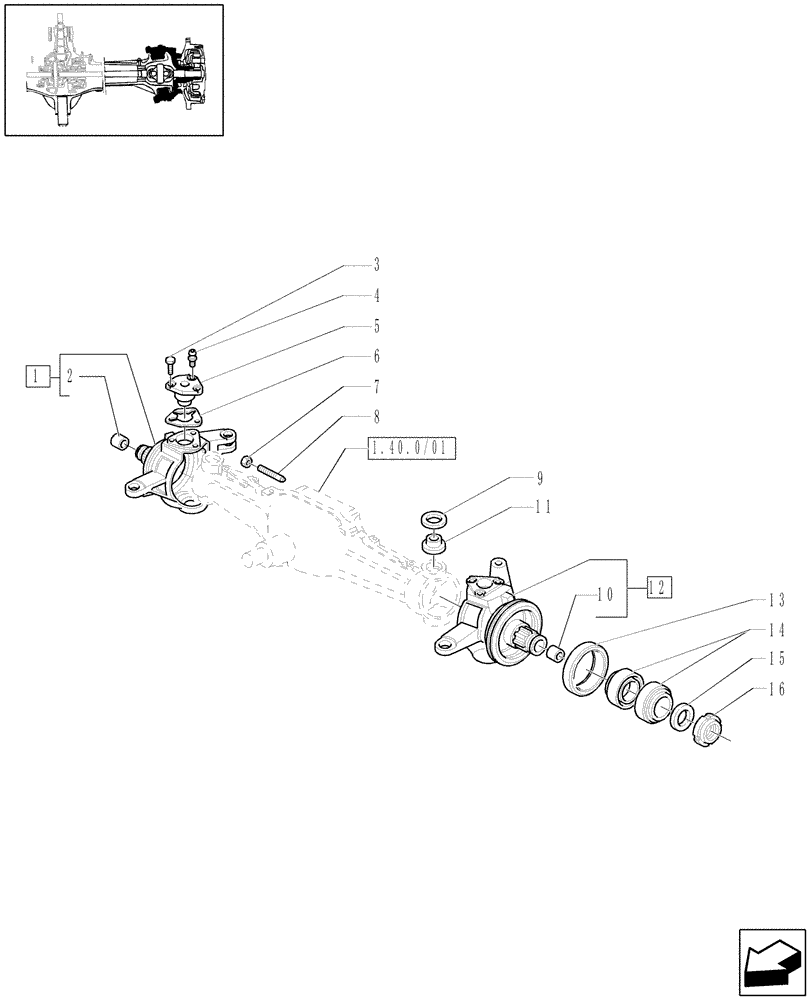

Запчасти Case IH JX1070U (1.40.10/02[01]) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - STUB AXLES (04) - FRONT AXLE & STEERING

1

5198479

GLAND

RH, JX70U

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

1шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN

4шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

6

5100791

SHIM,.20mm Thk

1шт.

6

5100792

SHIM,.25mm Thk

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

8

87325679

SET SCREW,M18 x 98mm, Cl 8.8, Half Dog Pt

M18X105

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

10

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

11

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

30X55X17

4шт.

12

5198477

STEERING KNUCKLE,RH

LH

1шт.

13

5184122

SEAL,130mm ID x 154mm OD x 18mm Thk

154X130X15

2шт.

14

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

70X110X21

4шт.

15

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

2шт.

16

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

RH Thread, M70x2

1шт.

16

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

LH Thread, M70x2

1шт.
