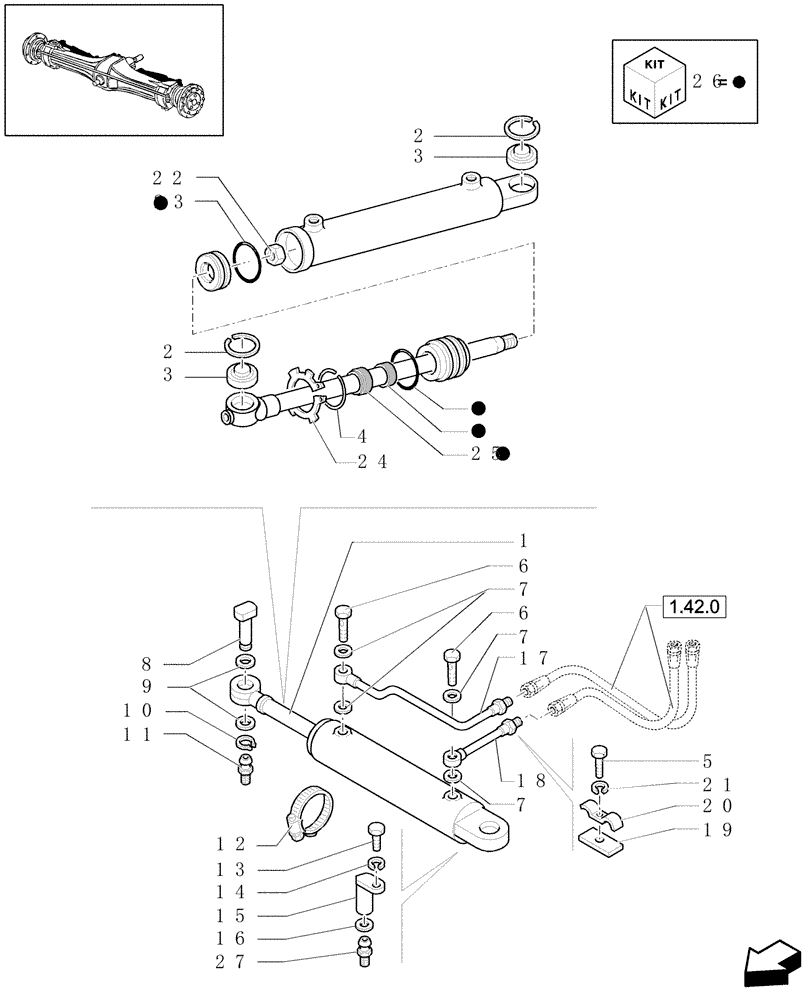

Запчасти Case IH JX1070U (1.40. 0/07[01]) - FRONT AXLE 4WD - CYLINDER:PARTS (04) - FRONT AXLE & STEERING

1

5189887

STEERING CYLINDER,Double Acting, 22mm Rod, 128mm Stroke

1шт.

2

5190903

LOCKING RING

2шт.

3

5190901

BUSHING

2шт.

4

5190912

LOCKING RING

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

6

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23x2

4шт.

8

5173252

PIN,19.98mm OD x 79.5mm L

1шт.

9

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

10

11066876

SNAP RING,M20, Ext

1шт.

11

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

1шт.

12

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

M50-70

1шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

5165265

PIN,19.99mm OD x 100mm L

1шт.

16

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

20.5 x 28 x 16

1шт.

17

5174932

HYD TUBE

1шт.

18

5174930

HYD TUBE

1шт.

19

5138294

SUPPORT

1шт.

20

4999554

CLAMP,2 Hoses

1шт.

21

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

22

15504021

NUT,M16 x 1.5

LH

1шт.

23

5190909

SEAL

1шт.

24

5190907

SNAP RING

1шт.

25

5190911

SEAL

1шт.

26

5190591

SEAL KIT

Seals

1шт.

27

87414

LUBE NIPPLE,1/4" - 28

1шт.
