Запчасти Case IH JX1070U (1.40. 0/05[01]) - FRONT AXLE 4WD - DIFFERENTIAL: PARTS (04) - FRONT AXLE & STEERING

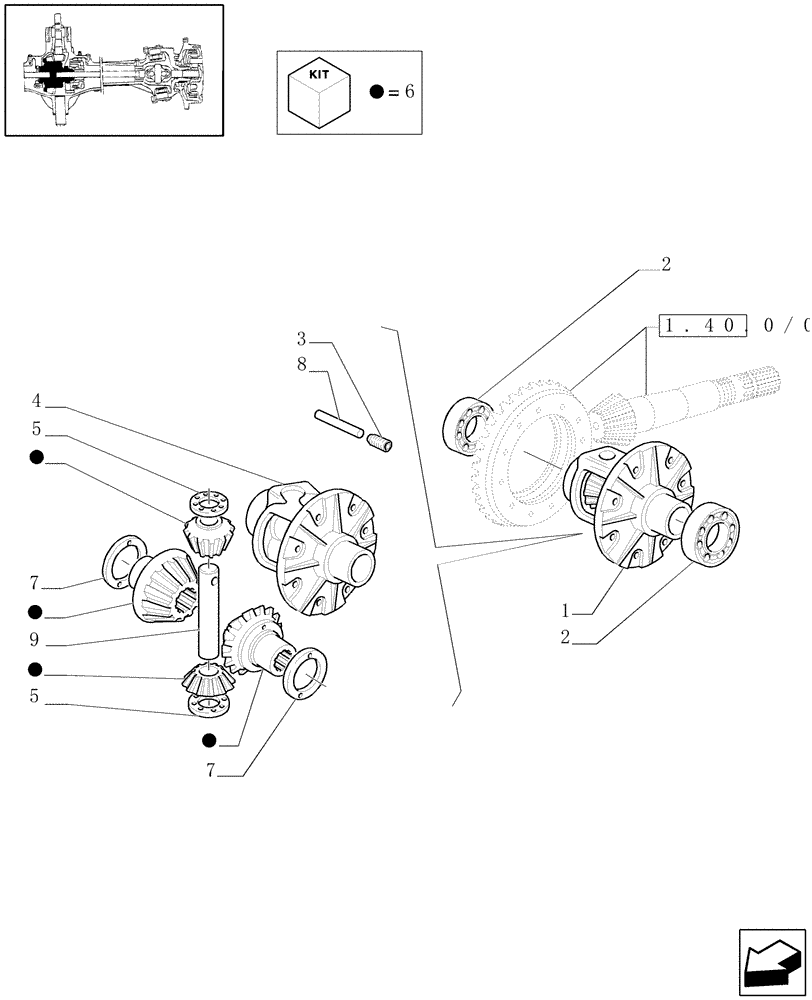

Схема запчастей Case IH JX1070U - (1.40. 0/05[01]) - FRONT AXLE 4WD - DIFFERENTIAL: PARTS (04) - FRONT AXLE & STEERING
6
6
6
6
1.40.0/04
1
2
7
6
7
2
5
6
9
4
5
3
8

Артикул

Название

Примечание

Количество

1

5167698

DIFFERENTIAL

1шт.

2

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

50 x 90 x 21.75

2шт.

3

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

4

5174801

HOUSING

1шт.

5

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

2шт.

6

87523074

KIT

1шт.

7

5167655

THRUST WASHER,30.2mm ID x 54mm OD x 1.5mm Thk

1шт.

7

5167694

THRUST WASHER,30.2mm ID x 54mm OD x 1.6mm Thk

1шт.

7

5167702

THRUST WASHER,30.2mm ID x 54mm OD x 1.7mm Thk

1шт.

7

5167703

THRUST WASHER,30.2mm ID x 54mm OD x 1.8mm Thk

1шт.

7

5183693

THRUST WASHER,30.2mm ID x 54mm OD x 1.9mm Thk

1шт.

7

5183694

THRUST WASHER,30.2mm ID x 54mm OD x 2mm Thk

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5 x 6.5

1шт.

9

5103612

PIN,22mm OD x 123mm L

1шт.

Выбрано товаров: 14
