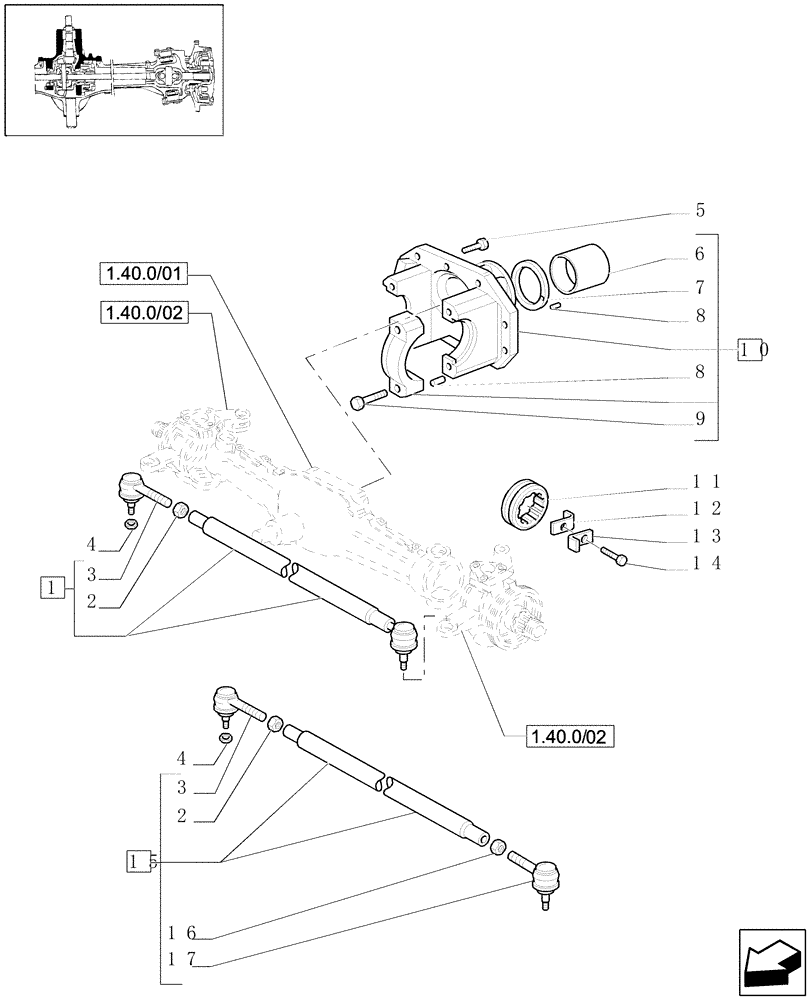

Запчасти Case IH JX1070U (1.40. 0/03) - FRONT AXLE 4WD - SUPPORT, ROD (04) - FRONT AXLE & STEERING

1

5165152

TRACK ROD ASSY

JX1070U, JX1080U, Serial Range: -C5038

1шт.

1

5168933

TRACK ROD ASSY,30mm ID x 1475mm L

JX1090U - JX1100U

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

M20 x 1

1шт.

3

5109553

BALL JOINT

M16 x M20 Threads

1шт.

4

12575921

NUT,M16 x 1.5, Cl 05

2шт.

5

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

10шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

8

4966244

PIN,5mm OD x 15mm L

M5 x 15

3шт.

9

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

10

5153613

SUPPORT

JX1090U - JX1100U

1шт.

10

5165132

SUPPORT

JX1070U - JX1080U

1шт.

11

4966240

BEARING LOCK NUT,M95 x 2, 15T

M95, JX1070U - JX1080U

2шт.

11

4996750

RING NUT,M100 x 2

M100, JX1090U - JX1100U

2шт.

12

4966243

ADJUSTING PLATE

JX1070U - JX1080U

2шт.

12

4996751

PLATE

JX1090U - JX1100U

2шт.

13

562659

PLATE

2шт.

14

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

87349837

STEERING TIE-ROD

ASSY, JX1070U, JX1080U, Start Serial: D5038

1шт.

16

5119380

NUT

, Start Serial: D5038

1шт.

17

87350224

TIE-ROD

, Start Serial: D5038

1шт.
