(0.05.4[05]) - MAINTENANCE PARTS - PUMPS

Запчасти Case IH JX1070U (0.05.4[05]) - MAINTENANCE PARTS - PUMPS (00) - GENERAL

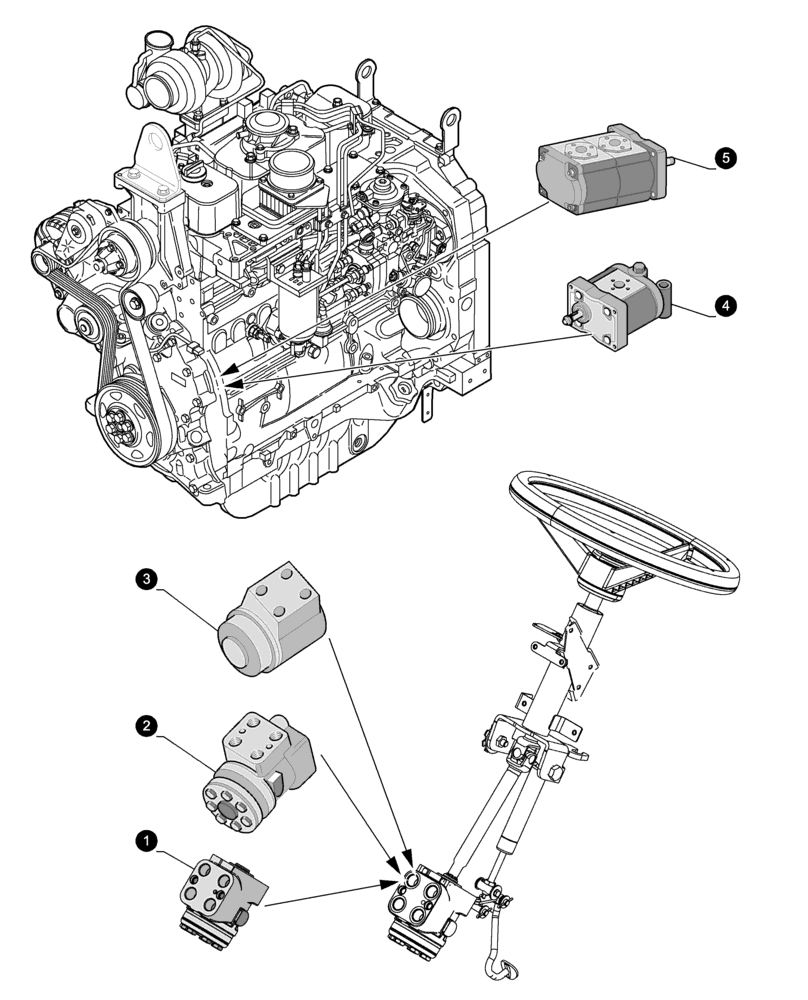

Схема запчастей Case IH JX1070U - (0.05.4[05]) - MAINTENANCE PARTS - PUMPS (00) - GENERAL
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84266839

HYDRAULIC STEERING

Steering Column

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

Valid with VAR. 500, VAR. 501

1шт.

2

84266840

HYDRAULIC STEERING

Steering Column

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

3

84266839

HYDRAULIC STEERING

Steering Column

1шт.

Valid with JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

5180275

HYDRAULIC PUMP,246.67 CC

On Engine

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

5

47129338

HYDRAULIC PUMP,22.9 CC

On Engine

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.
