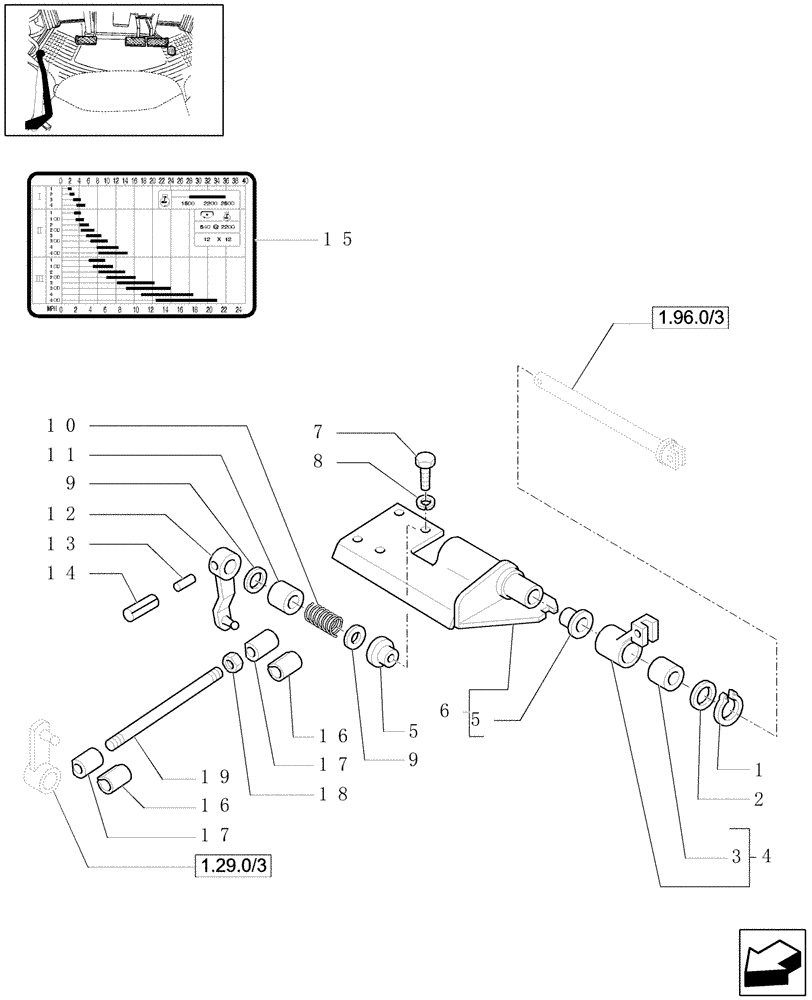

Запчасти Case IH JX1070U (1.34.2/03) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRON. REVERSING GEAR - 30-40 KM/H - CROSS-PIECE AND PARTS (04) - FRONT AXLE & STEERING

1

11068076

SNAP RING,M32, Ext

1шт.

2

44907953

WASHER, THRUST,32.2mm ID x 44mm OD x 3mm Thk

32 x 44 x 3

1шт.

3

44907939

BUSHING,31.99mm ID x 36mm OD x 30mm L

32 x 34 x 30

1шт.

4

5173579

SUPPORT

1шт.

5

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

6

5173762

SUPPORT

1шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

9

5171256

SHIM,22.1mm ID x 38mm OD x 3mm Thk

22 x 38 x 3

2шт.

10

585488

SPRING

1шт.

11

5171257

SPACER,22.1mm ID x 27mm OD x 22mm L

22 x 27 x 22

1шт.

12

5174555

LEVER

1шт.

13

14601670

LOCK PIN,M5 x 40, Slotted

1шт.

14

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

15

82006677

DECAL

VAR. 271

1шт.

16

10125674

CLAMP,15mm

2шт.

17

10124611

BALL JOINT HEAD

2шт.

18

10791014

NUT,M10 x 1.25, Cl 04

2шт.

19

5166698

TIE-ROD

1шт.
