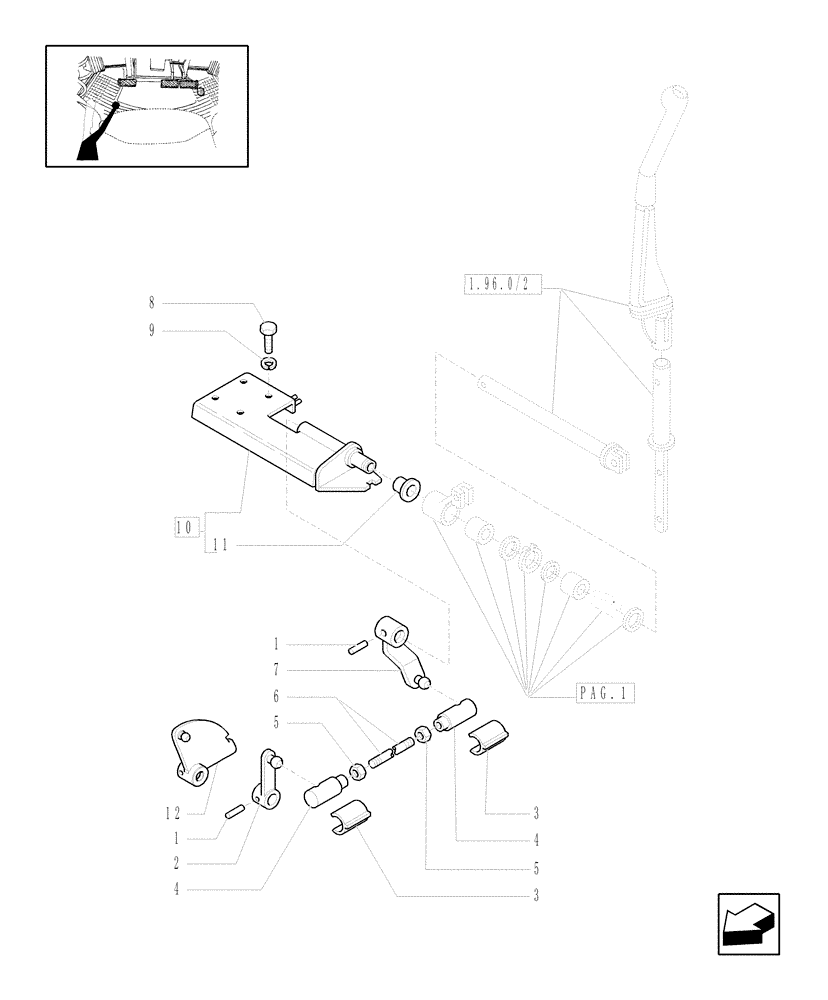

Запчасти Case IH JX1070U (1.34.2/02[02]) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - CROSS-PIECE AND PARTS (04) - FRONT AXLE & STEERING

1

14601670

LOCK PIN,M5 x 40, Slotted

3шт.

1

14607270

LOCK PIN,M8 x 40, Slotted

3шт.

2

5171312

LEVER

, Serial Range: -C5298

1шт.

3

10125674

CLAMP,15mm

2шт.

4

10124611

BALL JOINT HEAD

2шт.

5

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

2шт.

6

5166749

TIE-ROD

1шт.

7

5174555

LEVER

1шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

5173762

SUPPORT

1шт.

11

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

12

87342319

LEVER

, Start Serial: D5298

1шт.
