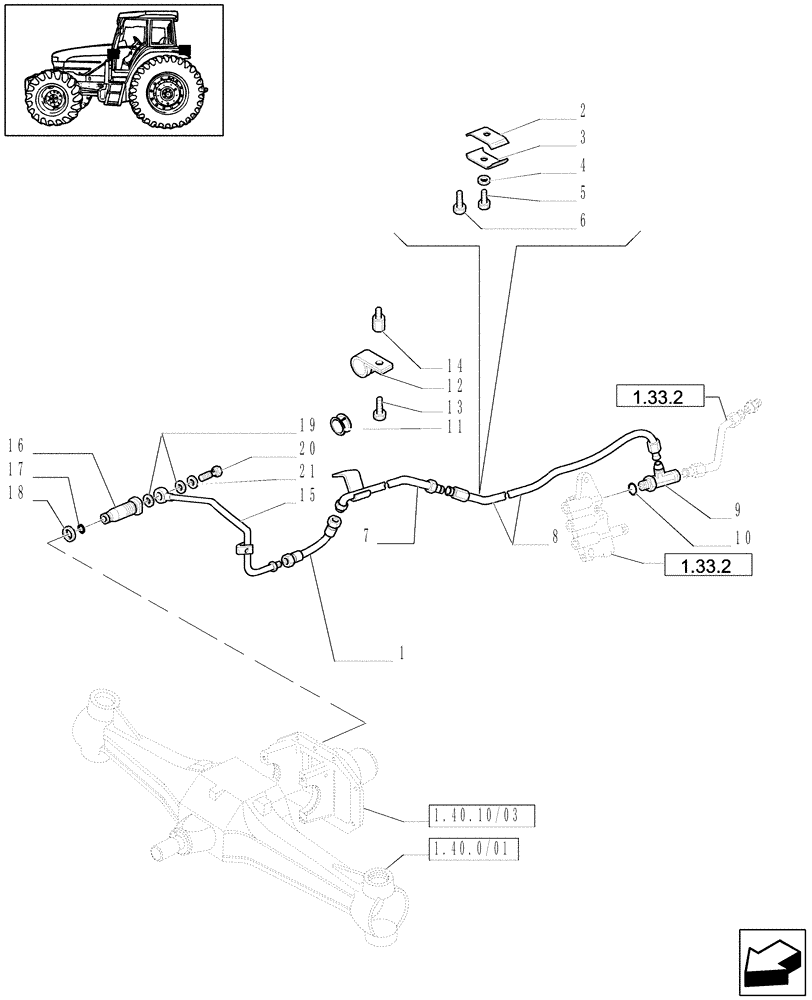

Запчасти Case IH JX1070U (1.33.2/21) - (VAR.500-501) FRONT AXLE CLASS 1 WITH SECOND STEERING CYLINDER AND HYDRAULIC LOCK - PIPES (04) - FRONT AXLE & STEERING

1

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

1шт.

2

5193550

CLAMP,6.5mm ID

FRONT

1шт.

3

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

1шт.

4

10516474

LOCK WASHER

D = 6

4шт.

5

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

4шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

7

47132740

HYD TUBE

1шт.

8

47129798

HYD TUBE

1шт.

9

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5118182

RING

1шт.

12

4951136

CLAMP

1шт.

13

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

14

5198397

SPACER

1шт.

15

5174936

HYD TUBE

1шт.

16

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

JX1070U, JX1080U

1шт.

17

81844608

O-RING,11.10mm ID x 1.78mm

0 .426" ID x .070"

1шт.

18

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

1шт.

19

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14 x 20 x 1.5

2шт.

20

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

21

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.
