Запчасти Case IH JX1070U (1.33.2/17[02]) - (VAR.727) SYNCHRO MESH GEARED POWER TAKE -OFF 540 RPM - VALVE SUPPORT (04) - FRONT AXLE & STEERING

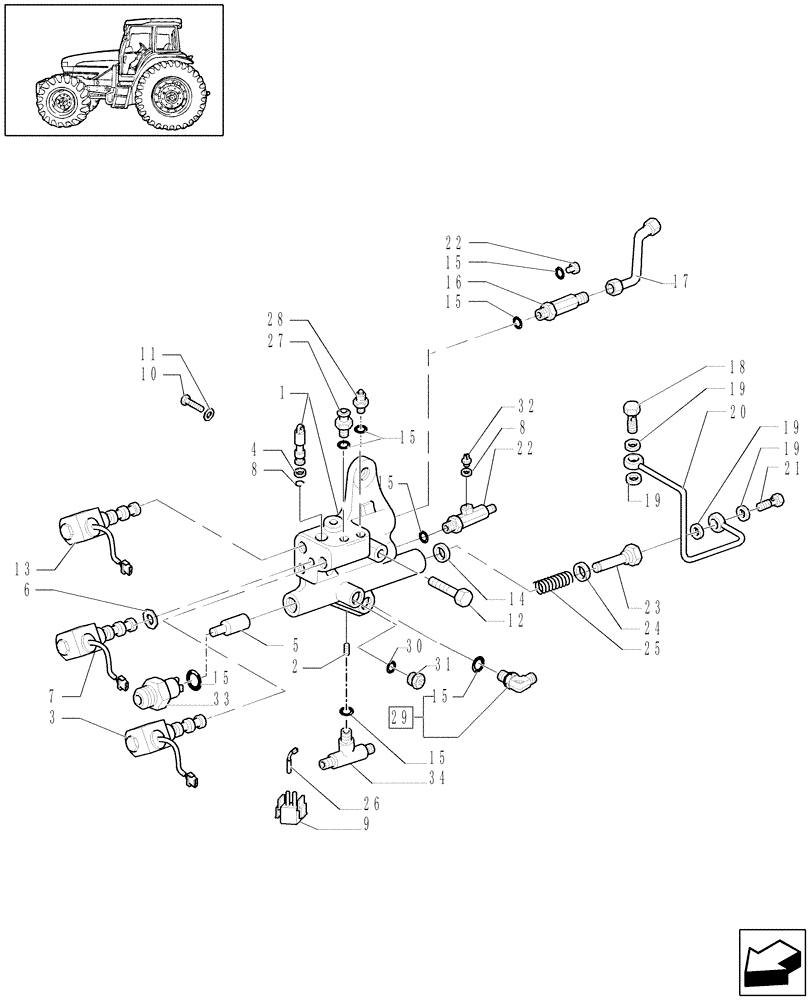

Схема запчастей Case IH JX1070U - (1.33.2/17[02]) - (VAR.727) SYNCHRO MESH GEARED POWER TAKE -OFF 540 RPM - VALVE SUPPORT (04) - FRONT AXLE & STEERING
28
1
14
16
5
8
13
15
12
22
21
33
10
4
19
20
24
32
17
6
19
8
34
23
2
11
30
25
22
15
15
29
18
15
9
31
15
7
15
15
27
19
19
3
26

Артикул

Название

Примечание

Количество

1

5174902

SUPPORT

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

7шт.

3

5167139

SOLENOID VALVE

PTO

1шт.

4

5137965

SCRAPER RING

1шт.

5

5169220

HYDRAULIC VALVE

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5164628

SOLENOID

4WD

1шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

9

12326885

ELEC CONNECTOR,Male, 2 Pin

1шт.

10

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

11

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

12

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 105

1шт.

13

5164627

SOLENOID

Diff. Lock

1шт.

14

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

D=5

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

5шт.

16

5162919

EXTENSION

1шт.

17

5162915

TUBE

1шт.

18

11903817

BANJO BOLT

1шт.

19

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10 x 16 x 1.5

4шт.

20

5169701

TUBE

1шт.

21

5169835

BANJO BOLT

1шт.

22

5169207

HYD CONNECTOR

M8 x 1.25

1шт.

23

5196410

PLUG

1шт.

24

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20 x 26 x 1.5

1шт.

25

5157119

SPRING,11.5mm x 127mm

1шт.

26

5165459

ELEC. TERMINAL PIN,Tin, 0.5 - 2.0mm

1шт.

27

5174063

HYD CONNECTOR,1/2-14, M18 x 1.5

M18 x 1.5, 1/2"-20

1шт.

28

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

M18 x 1.5, 3/4"-16

1шт.

29

5155452

ELBOW

M18 x 1.5, 7/8"-16, Serial Range: -C5642

1шт.

29

87615926

HYD CONNECTOR

, Start Serial: D5642

1шт.

30

14438185

O-RING,24mm ID x 3mm

1шт.

31

5174927

PLUG

, Serial Range: -C5642

1шт.

31

87537082

PLUG

, Start Serial: D5642

1шт.

32

87384756

SWITCH ASSY

Oil

1шт.

33

87542115

HYD CONNECTOR

, Start Serial: D5642

1шт.

34

87616144

HYD CONNECTOR

, Start Serial: D5642

1шт.

Выбрано товаров: 36
