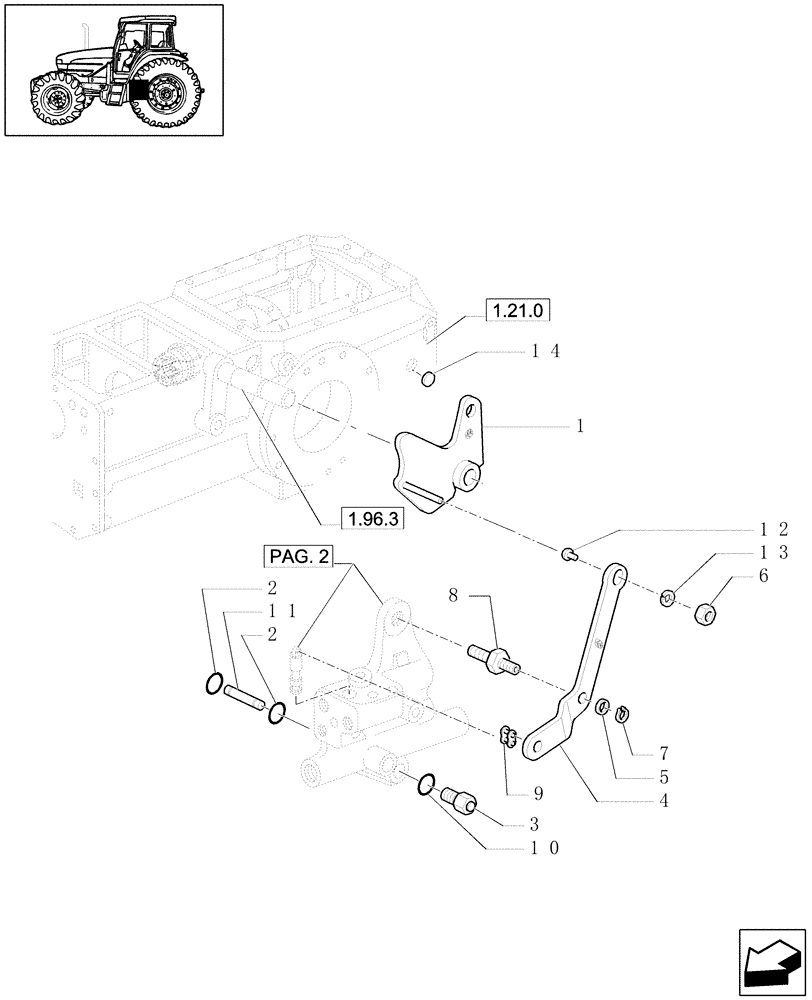

Запчасти Case IH JX1070U (1.33.2/17[01]) - (VAR.727) SYNCHRO MESH GEARED POWER TAKE -OFF 540 RPM - LEVERS (04) - FRONT AXLE & STEERING

1

47124615

LEVER

1шт.

2

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

3

5174927

PLUG

1шт.

4

47124611

LEVER

1шт.

5

14499504

WASHER,10.5mm ID x 18mm OD x 2mm Thk

8X17

1шт.

6

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

7

11065976

CIRCLIP,M10, Ext

1шт.

8

47124612

SCREW

1шт.

9

5166277

CHAIN LINK

1шт.

10

14438185

O-RING,24mm ID x 3mm

1шт.

11

5174926

PIPE COUPLING

1шт.

12

5166308

SPACER,8mm ID x 14mm OD x 16.5mm L

1шт.

13

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

5171614

PLUG,27mm OD

D=27

1шт.
