Запчасти Case IH JX1070U (1.33.2/13) - (VAR.327-327/1) FRONT DIFFERENTIAL HYDRAULIC LOCKING - PIPES (04) - FRONT AXLE & STEERING

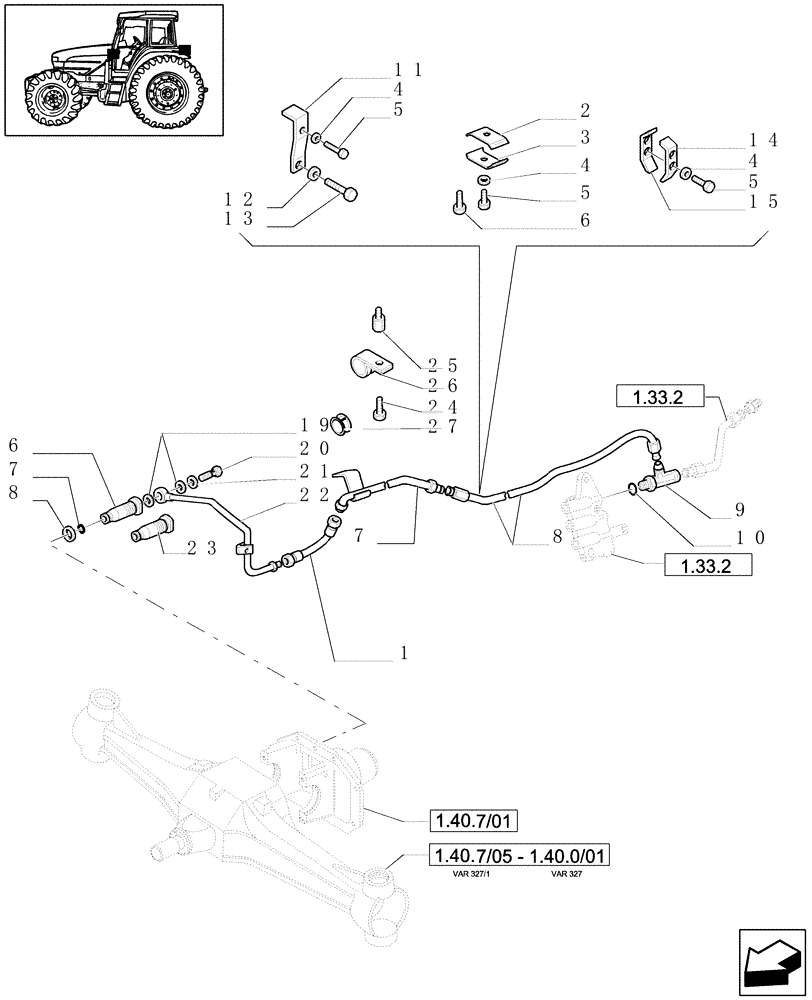

Схема запчастей Case IH JX1070U - (1.33.2/13) - (VAR.327-327/1) FRONT DIFFERENTIAL HYDRAULIC LOCKING - PIPES (04) - FRONT AXLE & STEERING
24
21
12
3
7
17
25
27
10
20
22
13
6
19
5
1
5
15
9
23
2
4
18
5
11
14
4
26
4
16
8

Артикул

Название

Примечание

Количество

1

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

380mm Lg.

1шт.

1

5126507

FLEXIBLE HOSE,8mm ID x 510mm L, SAE 100R2

510mm Lg.

1шт.

2

5193550

CLAMP,6.5mm ID

1шт.

3

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

1шт.

4

10516474

LOCK WASHER

D=6

4шт.

5

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

4шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

7

47132740

HYD TUBE

, Serial Range: -C6228

1шт.

7

84152240

HYD TUBE,12 mm OD

, Start Serial: D6228

1шт.

8

47129798

HYD TUBE

1шт.

9

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5174101

BRACKET

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

13

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

14

5174104

BRACKET

1шт.

15

5174105

BRACKET

1шт.

16

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

JX1070U, JX1080U

1шт.

17

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

18

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

1шт.

19

2852356

SEALING WASHER

14 x 20 x 1.5

2шт.

20

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

21

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

22

5163427

HYD TUBE

JX1090U, JX1100U

1шт.

22

5174936

HYD TUBE

JX1070U, JX1080U

1шт.

23

5163430

HYD CONNECTOR

JX1090U, JX1100U

1шт.

24

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

25

5198397

SPACER

1шт.

26

4951136

CLAMP

1шт.

27

5118182

RING

1шт.
