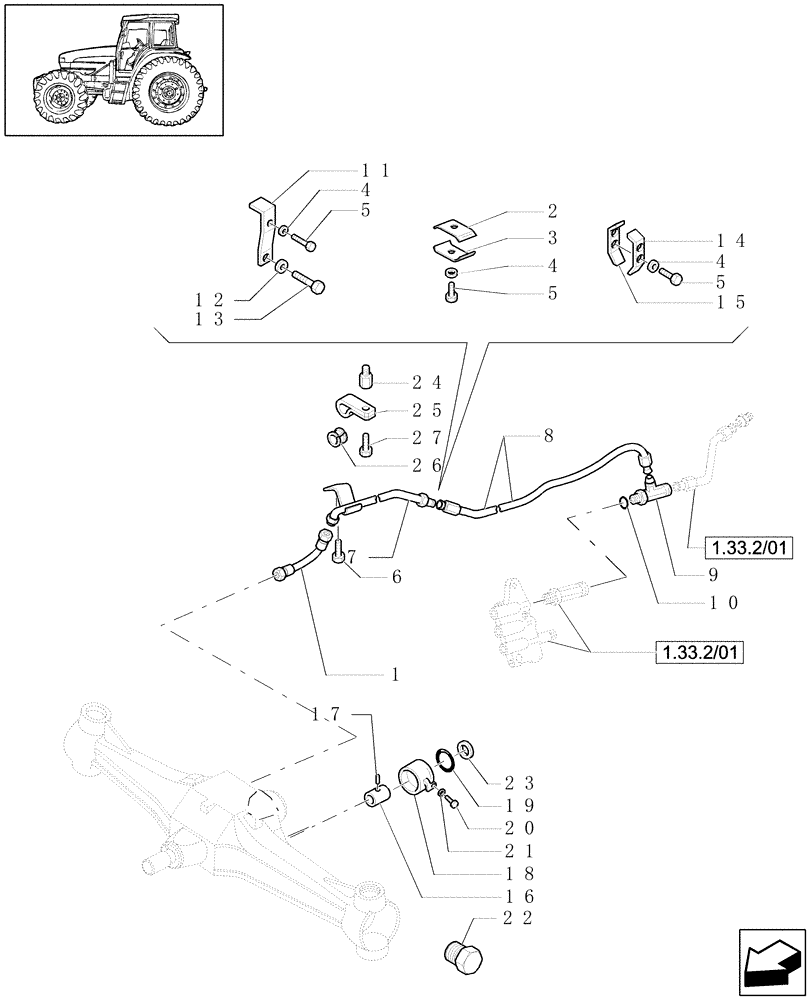

Запчасти Case IH JX1070U (1.33.2/03) - (VAR.422) VERSION FOR JAPAN - HYDRAULIC LINES - PIPES (04) - FRONT AXLE & STEERING

1

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

380mm Lg.

1шт.

1

5126507

FLEXIBLE HOSE,8mm ID x 510mm L, SAE 100R2

510mm Lg.

1шт.

2

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

1шт.

3

5193550

CLAMP,6.5mm ID

1шт.

4

10516474

LOCK WASHER

D=6

4шт.

5

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

3шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

7

47132740

HYD TUBE

, Serial Range: -C6228

1шт.

7

84152240

HYD TUBE,12 mm OD

, Start Serial: D6228

1шт.

8

47129798

HYD TUBE

1шт.

9

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5174101

BRACKET

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

13

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

14

5174104

BRACKET

1шт.

15

5174105

BRACKET

M6

1шт.

16

5146936

SPLINED COUPLING

1шт.

17

10334420

DOWEL,M4 x 38

1шт.

18

5164650

BUSHING

1шт.

19

14460980

O-RING,75.87mm ID x 2.62" Width

1шт.

20

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

21

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

22

5177816

PLUG

1шт.

23

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

1шт.

24

5198397

SPACER

1шт.

25

4951136

CLAMP

1шт.

26

5118182

RING

1шт.

27

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
