Запчасти Case IH JX1070U (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL

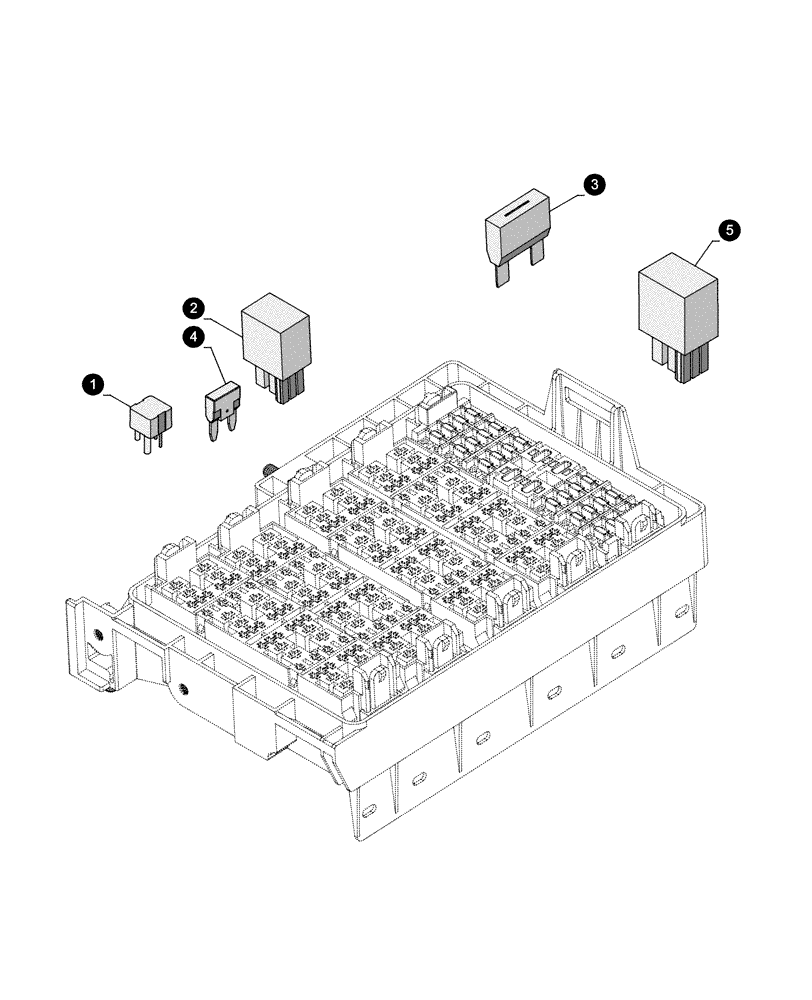

Схема запчастей Case IH JX1070U - (0.05.4[03]) - MAINTENANCE PARTS - FUSES (00) - GENERAL
3
5
4
1
2

№

Артикул

Название

Примечание

Количество

1

82030798

RELAY,12V, 70A

12V, 70A

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

2

5155318

RELAY,12V, 20A

12V, 20A, Microrelay

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

From Serial N.(HJT064978 Jesi Prod. / After date 05 September 2005 St. Valentin Prod.), After date January 2008

1шт.

2

5171084

RELAY,12V, 20A, N.C.

12V, 20A, Microrelay

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

From Serial N.(HJT064978 Jesi Prod. / After date 05 September 2005 St. Valentin Prod.)

1шт.

2

5171083

RELAY,12V, 20A, N.O.

12V, 20A, Microrelay

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

From Serial N.(HJT064978 Jesi Prod. / After date 05 September 2005 St. Valentin Prod.)

1шт.

2

86619908

RELAY,12V, 150A

12V

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

3

5190333

FUSE,40A, Maxi, Orange

40A, Maxival, Orange

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

87693742

FUSE,5A

5A, Minival

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

Up to Serial N. (HJT064977 Jesi Prod. / 05 September 2005 St. Valentin Prod.)

1шт.

4

9811773

FUSE,10A, Micro, Red

10A, Microval, Red

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

84090658

FUSE,Lt Blue, 15 Amp

5A, Minival

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

Up to Serial N. (HJT064977 Jesi Prod. / 05 September 2005 St. Valentin Prod.)

1шт.

4

D9ZB14A094FA

FUSE

25A, Minival

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

5173263

FUSE,50A, Maxi, Red

50A

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

10395890

FUSE,5A, Mini, Beige

5A, Minival

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

From Serial N.(HJT064978 Jesi Prod. / After date 05 September 2005 St. Valentin Prod.)

1шт.

4

87522597

FUSE,10A, Mini, Red

10A, Minival, Red

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

87524877

FUSE,15A, Mini, Blue

15A, Minival, Blue

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

10401290

FUSE,25 amp Mini

25A, Minival

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

From Serial N.(HJT064978 Jesi Prod. / After date 05 September 2005 St. Valentin Prod.)

1шт.

5

82012872

RELAY,70A

12V, 70A

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

5

5155317

RELAY,12V, 30A

12V, 30A, Microrelay

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

5

7525171

RELAY,Mini, 12V, 20A

20A

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR Models

1шт.

Выбрано товаров: 43
